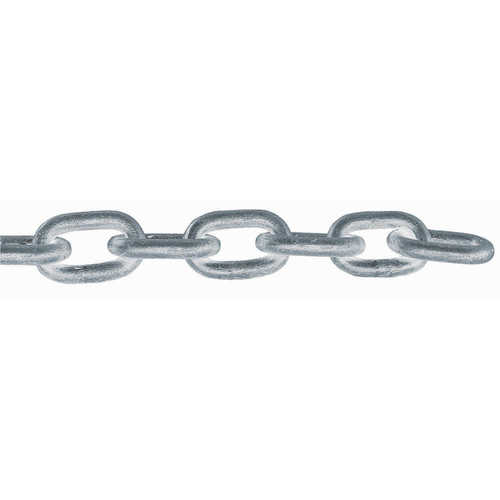

Plastimo Grade 30 Non-Calibrated Short Link Mooring Chain

ID 1382914

$ 400.92

1-2 weeks delivery time

Diameter, mm:

Length, m:

The Plastimo Grade 30 Non-Calibrated Short Link Chain is designed for mooring applications and use with marking buoys where a windlass is not required. Manufactured to DIN 764 / DIN 5685 A dimensions, the chain is available in 6 mm, 8 mm, 10 mm, 12 mm and 14 mm diameters with lengths from 40 m to 100 m. Depending on the selected variant, the chain offers safe working loads from 290 kg to 2,000 kg, breaking loads from 1,300 kg to 7,000 kg, and weights from 0.73 kg/m to 4.2 kg/m, providing reliable performance for marine mooring installations.

Description
Ask a Question

Plastimo Grade 30 Non-Calibrated Short Link Mooring Chain – 6-14 mm, 40-100 m

The Plastimo Grade 30 Non-Calibrated Short Link Chain is designed for marine mooring applications, including use with marking buoys and mooring systems where a windlass is not required. Manufactured to DIN 764 / DIN 5685 A dimensions, the chain combines Grade 30 steel construction with a non-calibrated short link design for dependable performance in marine environments.

The range includes multiple diameters and chain lengths to accommodate different mooring requirements. Depending on the selected model, the chain provides safe working loads from 290 kg up to 2,000 kg and breaking loads from 1,300 kg to 7,000 kg.

Key Features

Grade 30 steel construction
Non-calibrated short link chain
Manufactured to DIN 764 / DIN 5685 A dimensions
Suitable for marking buoys and mooring applications
Designed for use without a windlass
Available in multiple diameters and lengths
Wide range of working and breaking loads

Available Variants

Part No.	Diameter	Length	Weight per Meter	Total Weight	Safe Working Load	Breaking Load
57189	6 mm	60 m	0.73 kg/m	43.8 kg	290 kg	1,300 kg
57179	6 mm	100 m	0.73 kg/m	73 kg	290 kg	1,300 kg
57190	8 mm	60 m	1.33 kg/m	79.8 kg	500 kg	2,300 kg
57180	8 mm	100 m	1.33 kg/m	133 kg	500 kg	2,300 kg
57181	10 mm	60 m	2.1 kg/m	126 kg	775 kg	4,300 kg
57206	12 mm	50 m	3.0 kg/m	150 kg	1,125 kg	5,000 kg
57182	14 mm	40 m	4.2 kg/m	168 kg	2,000 kg	7,000 kg

Technical Specifications

Brand	Plastimo
Product Type	Non-Calibrated Short Link Mooring Chain
Grade	30
Standards	DIN 764 / DIN 5685 A
Diameter Range	6-14 mm
Length Options	40 m, 50 m, 60 m and 100 m
Weight per Meter	0.73-4.2 kg/m (depending on variant)
Safe Working Load	290-2,000 kg (depending on variant)
Breaking Load	1,300-7,000 kg (depending on variant)
Applications	Marking buoys, mooring systems and installations without a windlass
