Tecnoseal Zinc Bosvik Propeller Anodes with Stainless Steel Ring, Shaft Ø20–50 mm

ID 1400541

$ 82.88

1-2 weeks delivery time

Shaft Diameter:

Item:

460 g
530 g
400 g
430 g
450 g
750 g
670 g

Tecnoseal zinc Bosvik propeller anodes supplied complete with stainless steel retaining ring, available for shaft diameters from Ø20 to Ø50 mm. Depending on the version, dimension l ranges from 25 to 55 mm, height h from 45 to 52 mm and outside diameter from Ø49 to Ø76 mm. Individual weights range from 0.40 to 0.75 kg. Select the required version according to shaft diameter and anode dimensions.

Description
Ask a Question

Tecnoseal Zinc Bosvik Propeller Anodes with Stainless Steel Ring – Shaft Ø20–50 mm

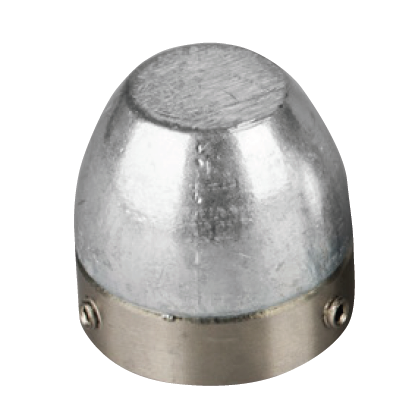

The Tecnoseal Bosvik Propeller Anodes are zinc (ZN) anodes supplied complete with a stainless steel retaining ring. The range is available for propeller shafts from Ø20 to Ø50 mm.

Each version is defined by shaft diameter, dimension l, overall height h, outside diameter Ø and weight. According to the Tecnoseal catalogue, outside diameters range from Ø49 to Ø76 mm and weights from 0.40 to 0.75 kg.

Key Features

Brand: Tecnoseal
Type: Bosvik propeller anode
Anode Material: Zinc (ZN)
Configuration: Complete with stainless steel retaining ring
Shaft Diameter Range: Ø20–50 mm
Outside Diameter Range: Ø49–76 mm
Height Range: 45–52 mm
Weight Range: 0.40–0.75 kg

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	l	h	Outside Ø	Weight
BOS25	Ø20 mm	25 mm	45 mm	Ø49 mm	0.40 kg / 400 g
BOS30	Ø25 mm	30 mm	45 mm	Ø54 mm	0.45 kg / 450 g
BOS33	Ø30 mm	33 mm	45 mm	Ø55 mm	0.43 kg / 430 g
BOS35	Ø35 mm	35 mm	45 mm	Ø62 mm	0.53 kg / 530 g
BOS40	Ø40 mm	40 mm	45 mm	Ø62 mm	0.46 kg / 460 g
BOS50	Ø45 mm	50 mm	52 mm	Ø76 mm	0.75 kg / 750 g
BOS55	Ø50 mm	55 mm	52 mm	Ø76 mm	0.67 kg / 670 g

Dimensions for Model Selection

Shaft Size: Propeller shaft diameter
l: Catalogue length dimension
h: Overall height
Ø: Outside anode diameter
Weight: Individual anode weight

Select the required Tecnoseal Bosvik anode according to shaft diameter, l and h dimensions, outside diameter and weight.
