ID
1399889
$ 75.47
1-2 weeks delivery time
Size:
- Ø81x38
- Ø111x61
- Ø111x60
The Tecnoseal America Bow Thruster propeller nut anode range includes 01046, 19024 and 19024-6, all in zinc. The 01046 version measures Ø81 mm × H38 mm and weighs 0.39 kg, while the 19024 and 19024-6 versions measure Ø111 mm and weigh 1.02 kg and 1.04 kg respectively. The 19024 has h = 61 mm and i = 70 mm, while 19024-6 has h = 60 mm and i = 75 mm. All variants use Ø2 = 6.50 mm.
- Description
- Ask a Question
-

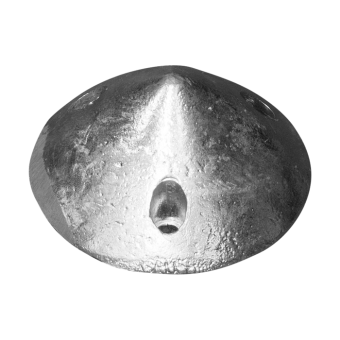

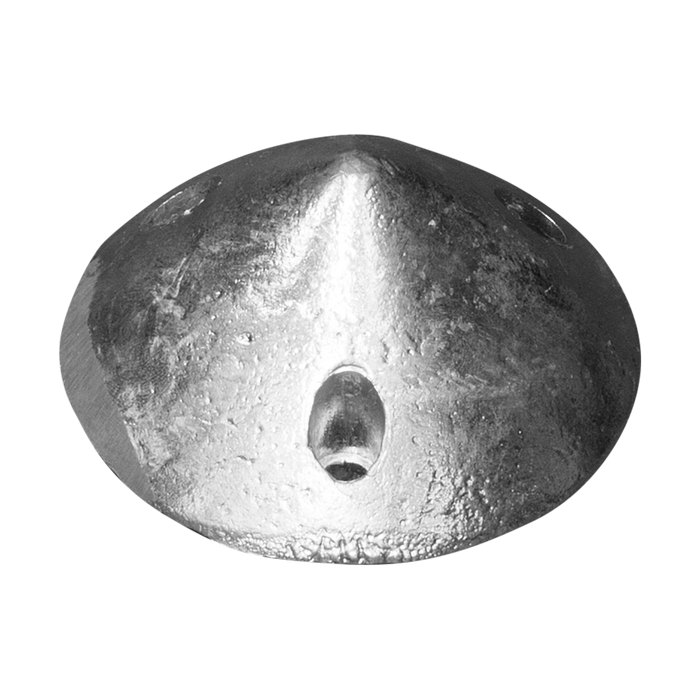

Tecnoseal 01046 / 19024 Series Zinc America Bow Thruster Propeller Nut Anodes – Ø81 / Ø111 mm
The Tecnoseal America Bow Thruster propeller nut anode series includes three zinc variants: 01046, 19024 and 19024-6. The variants differ in overall size, height, internal dimensions and weight.
The compact 01046 version has an overall diameter of 81 mm and weighs 0.39 kg. The larger 19024 and 19024-6 versions both have an overall diameter of 111 mm, with differences in height and dimension (i).
Technical Specifications
Product Code Material Weight h i Ø Ø1 Ø2 01046 Zinc 0.39 kg (0.86 lbs) 38 mm (1.50") 47 mm (1.85") 81 mm (3.19") 37 mm (1.46") 6.50 mm (0.26") 19024 Zinc 1.02 kg (2.25 lbs) 61 mm (2.40") 70 mm (2.76") 111 mm (4.37") 62 mm (2.44") 6.50 mm (0.26") 19024-6 Zinc 1.04 kg (2.29 lbs) 60 mm (2.36") 75 mm (2.95") 111 mm (4.37") 62 mm (2.44") 6.50 mm (0.26")
Product Variants
- Tecnoseal 01046: Ø81 mm, h 38 mm, i 47 mm, Ø1 37 mm, 0.39 kg
- Tecnoseal 19024: Ø111 mm, h 61 mm, i 70 mm, Ø1 62 mm, 1.02 kg
- Tecnoseal 19024-6: Ø111 mm, h 60 mm, i 75 mm, Ø1 62 mm, 1.04 kg
-
