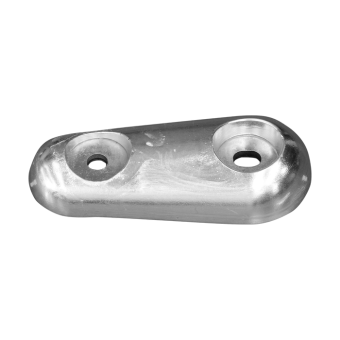

Tecnoseal Aluminium Vetus-Type Profiled Bar Bolt-On Sacrificial Anodes

ID 1399386

$ 56.47

1-2 weeks delivery time

Size:

152x68x23
250x75x29

Item:

530 g
1300 g

Tecnoseal aluminium Vetus-Type profiled bar bolt-on sacrificial anodes for hull and transom applications. The range includes two models with lengths of 152 and 250 mm and weights of 0.53 and 1.30 kg. Tecnoseal 03510AL features 80 mm hole centres and overall dimensions of 152 x 68 x 23 mm, while 03511AL features 140 mm hole centres and overall dimensions of 250 x 75 x 29 mm. Both versions use Ø1 11 mm mounting holes with Ø2 11x15 mm recess dimensions. Select the required model according to overall dimensions, hole-centre distance and weight.

Description
Ask a Question

Tecnoseal Aluminium Vetus-Type Profiled Bar Bolt-On Sacrificial Anodes – 0.53–1.30 kg

The Tecnoseal Aluminium Vetus-Type Profiled Bar Anodes are bolt-on sacrificial anodes for hull and transom applications. The range includes two aluminium models with different profile dimensions, heights and mounting-hole centre distances.

Tecnoseal 03510AL has a length of 152 mm and 80 mm hole centres, while Tecnoseal 03511AL, also referenced as Osculati 43.902.26, has a length of 250 mm and 140 mm hole centres. Both versions feature Ø1 11 mm mounting holes and Ø2 11x15 mm recess dimensions.

Key Features

Brand: Tecnoseal
Type: Vetus-Type Profiled Bar
Product Type: Bolt-on sacrificial anode
Material: Aluminium
Application: Hull and transom
Available Models: 03510AL and 03511AL
Osculati Cross Reference: Tecnoseal 03511AL / Osculati 43.902.26
Length Range: 152–250 mm
Hole Centre Distance (i): 80–140 mm
Ø1: 11 mm
Ø2: 11x15 mm
Weight Range: 0.53–1.30 kg

Available Models and Technical Specifications

Tecnoseal Code	Osculati Reference	Weight	Length (l)	a	b	Height (h)	Height (h1)	Hole Centres (i)	Ø1	Ø2
03510AL	—	0.53 kg / 530 g	152 mm	52 mm	68 mm	23 mm	29 mm	80 mm	11 mm	11x15 mm
03511AL	43.902.26	1.30 kg / 1300 g	250 mm	55 mm	75 mm	29 mm	45 mm	140 mm	11 mm	11x15 mm

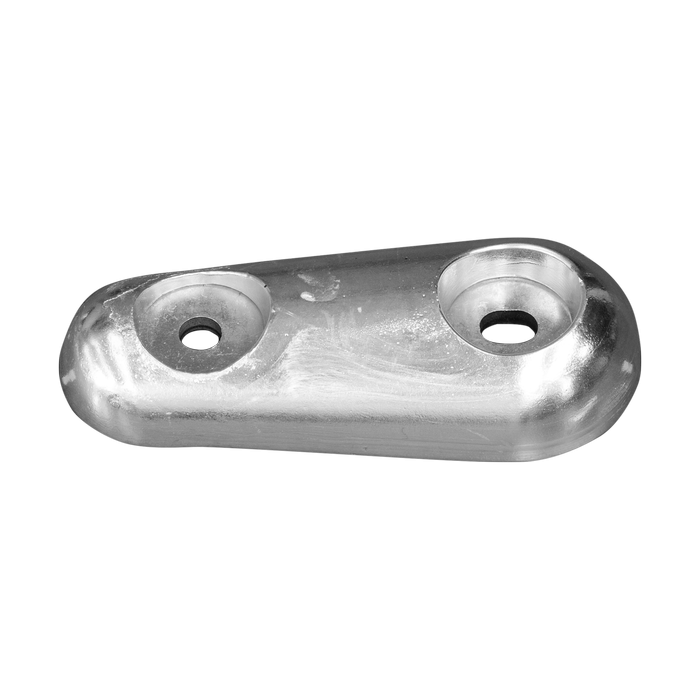

Tecnoseal 03510AL – 152 × 68 × 23 mm

Material: Aluminium
Type: Vetus-Type Profiled Bar
Weight: 0.53 kg / 530 g / 1.17 lb
Length (l): 152 mm / 5.98 in
a: 52 mm / 2.05 in
b: 68 mm / 2.68 in
Height (h): 23 mm / 0.91 in
Height (h1): 29 mm / 1.14 in
Hole Centres (i): 80 mm / 3.15 in
Ø1: 11 mm / 0.43 in
Ø2: 11x15 mm / 0.43x0.59 in

Tecnoseal 03511AL / Osculati 43.902.26 – 250 × 75 × 29 mm

Tecnoseal Code: 03511AL
Osculati Reference: 43.902.26
Material: Aluminium
Type: Vetus-Type Profiled Bar
Weight: 1.30 kg / 1300 g / 2.87 lb
Length (l): 250 mm / 9.84 in
a: 55 mm / 2.17 in
b: 75 mm / 2.95 in
Height (h): 29 mm / 1.14 in
Height (h1): 45 mm / 1.77 in
Hole Centres (i): 140 mm / 5.51 in
Ø1: 11 mm / 0.43 in
Ø2: 11x15 mm / 0.43x0.59 in

Dimensions for Model Selection

l: Overall length
a: Narrow profile width
b: Maximum profile width
h: Anode body height
h1: Overall profile height
i: Hole-centre distance
Ø1: Mounting-hole diameter
Ø2: Mounting recess dimensions

For replacement selection, compare the overall dimensions, hole-centre distance, mounting-hole dimensions and anode weight with the existing installation.
