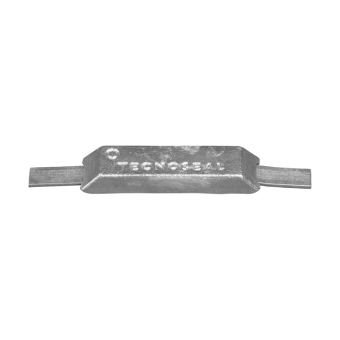

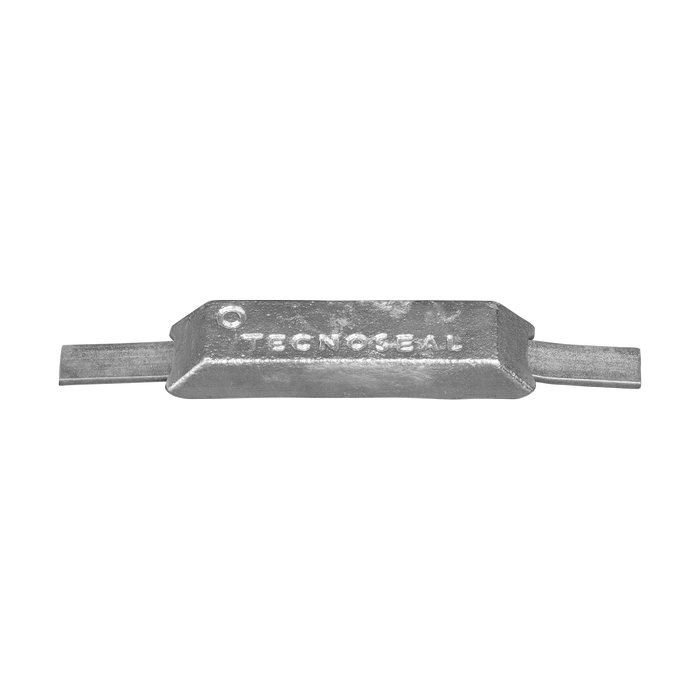

Tecnoseal Aluminium Ingot Type Weld-On Sacrificial Anodes with Steel Insert

Tecnoseal Aluminium Ingot Type Weld-On Sacrificial Anodes with Steel Insert – 0.70–4.50 kg

The Tecnoseal Aluminium Ingot Type Weld-On Anodes are sacrificial anodes with an integrated mounting strap for hull and transom applications. The range includes four aluminium models with different body dimensions, weights and strap sizes.

The standard configuration is supplied with a steel insert. Aluminium or stainless steel inserts are also available on request. Select the required model according to the anode body dimensions, weight and strap / insert dimensions.

Key Features

• Brand: Tecnoseal
• Product Type: Weld-on sacrificial anode with strap
• Type: Ingot Type
• Anode Material: Aluminium
• Applications: Hull and transom
• Mounting: Weld-on
• Standard Insert: Steel
• Optional Inserts: Aluminium or stainless steel available on request
• Available Models: 00380AL, 00381AL, 00383AL and 00383-1AL
• Weight Range: 0.70–4.50 kg
• Body Length Range: 190–310 mm
• Body Width Range: 50–140 mm
• Body Height Range: 26–35 mm

Available Models and Technical Specifications

Tecnoseal 00380AL – 700 g

• Product Code: 00380AL
• Material: Aluminium
• Body Dimensions: 190 × 50 × 26 mm
• Strap / Insert: 300 × 25 × 5 mm
• Weight: 0.70 kg / 700 g

Tecnoseal 00381AL – 1300 g

• Product Code: 00381AL
• Material: Aluminium
• Body Dimensions: 200 × 60 × 32 mm
• Strap / Insert: 300 × 25 × 5 mm
• Weight: 1.30 kg / 1300 g

Tecnoseal 00383AL – 3500 g

• Product Code: 00383AL
• Material: Aluminium
• Body Dimensions: 310 × 140 × 30 mm
• Strap / Insert: 400 × 30 × 6 mm
• Weight: 3.50 kg / 3500 g

Tecnoseal 00383-1AL – 4500 g

• Product Code: 00383-1AL
• Material: Aluminium
• Body Dimensions: 310 × 140 × 35 mm
• Strap / Insert: 400 × 30 × 6 mm
• Weight: 4.50 kg / 4500 g

Dimensions for Model Selection

• l: Anode body length
• a: Anode body width
• h: Anode body height
• Strap / Insert: Integrated mounting strap dimensions

For replacement selection, compare the anode body dimensions, weight and strap / insert dimensions with the existing installation.
