ID
1401118
$ 18.84
1-2 weeks delivery time
Size:
- 100x45x9
- 155x65x15
- 155x75x25
- 130x50x18
- 65x65x10
Item:
- 200 g
- 700 g
- 900 g
- 280 g
- 1700 g
Super Marine zinc bolt-on plate anodes for marine sacrificial corrosion protection, available in six sizes from 65x65x10 to 300x150x28 mm. Mounting centre distances range from 50 to 160 mm and zinc weights from 200 g to 8 kg. The different dimensional configurations allow selection according to the required mounting pattern and available installation space.
- Description
- Ask a Question
-

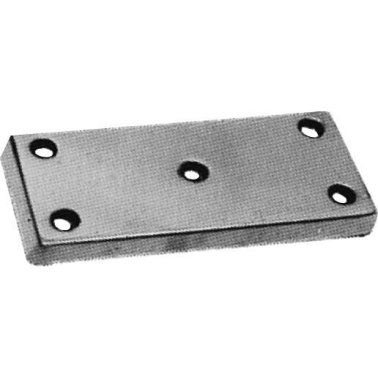

Super Marine Zinc Bolt-On Plate Anodes – 65–300 mm
The Super Marine zinc bolt-on plate anodes are designed for sacrificial corrosion protection in marine installations. The range includes six dimensional variants with different lengths, widths, heights, mounting centre distances and zinc weights.
The anodes use a two-point bolt-on mounting configuration. Select the appropriate version according to the required overall dimensions and mounting centre distance.
Available Models
VDM Code Dimensions Centre Distance Weight ANO1701 65x65x10 mm 51 mm 0.20 kg ANO1702 100x45x9 mm 50 mm 0.28 kg ANO1708 130x50x18 mm 77 mm 0.70 kg ANO1704 155x65x15 mm 118 mm 0.90 kg ANO1705 155x75x25 mm 80 mm 1.70 kg ANO46200 300x150x28 mm 160 mm 8.00 kg
Key Features
- Brand: Super Marine
- Material: Zinc
- Type: Bolt-on plate anode
- Length Range: 65–300 mm
- Width Range: 45–150 mm
- Height Range: 9–28 mm
- Centre Distance Range: 50–160 mm
- Weight Range: 0.20–8.00 kg
Select the correct anode according to the overall dimensions and mounting centre distance required for the installation.
-
