ID
1401109
$ 45.73
1-2 weeks delivery time
Size:
- 146x64x19
- 150x60x60
- 300x65x65
Item:
- 3000 g
- 1200 g
- 1004 g
Super Marine zinc bolt-on bar anodes for marine sacrificial corrosion protection, available in ten sizes with lengths from 75 to 455 mm and weights from 0.25 to 11 kg. The range includes different width, height and mounting centre-distance configurations for selection according to the required installation dimensions.
- Description
- Ask a Question
-

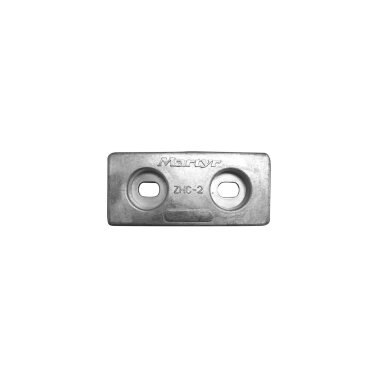

Super Marine Zinc Bolt-On Bar Anodes – 75–455 mm
The Super Marine zinc bolt-on bar anodes are designed for sacrificial corrosion protection in marine installations. The range includes ten dimensional configurations with different overall lengths, widths, heights, mounting centre distances and zinc weights.
The correct version should be selected according to the available mounting space and the required bolt centre distance.
Available Models
VDM Code Length Width Height Centre Distance Weight ANO155 146 mm 64 mm 19 mm 71 mm 1.004 kg ANO21520 147 mm 66 mm 23 mm 70 mm 1.2 kg ANO13200 210 mm 100 mm 30 mm 100 mm 3.78 kg ANO00303M 210 mm 70 mm 28 mm 250 mm 2.2 kg ANO1905 150 mm 60 mm 60 mm 80 mm 1.2 kg ANO1930 300 mm 65 mm 65 mm 200 mm 3 kg ANO96200 200 mm 65 mm 32 mm 110 mm 1.30 kg ANO1945 455 mm 94 mm 40 mm 230 mm 7 kg ANO1950 450 mm 105 mm 50 mm 230 mm 11 kg ANO58300 75 mm 34 mm 16 mm 135 mm 0.25 kg
Key Features
- Brand: Super Marine
- Material: Zinc
- Type: Bolt-on bar anode
- Length Range: 75–455 mm
- Width Range: 34–105 mm
- Height Range: 16–65 mm
- Weight Range: 0.25–11 kg
Select the appropriate anode according to the required length, width, height and mounting centre distance.
-
