The Hollex Aluminium Ball Shaft Anode is a spherical sacrificial anode designed to protect boat propeller shafts against corrosion in brackish and saltwater environments. Its steel core helps prevent the anode from becoming loose around the shaft. Available for shaft diameters of 22, 25, 25.4 (1"), 30, 35, 38, 40, 45, 50 and 60 mm. Manufactured from aluminium, the anode features a split ball-shaped design for installation around the shaft. Supplied individually.
- Description
- Ask a Question
-

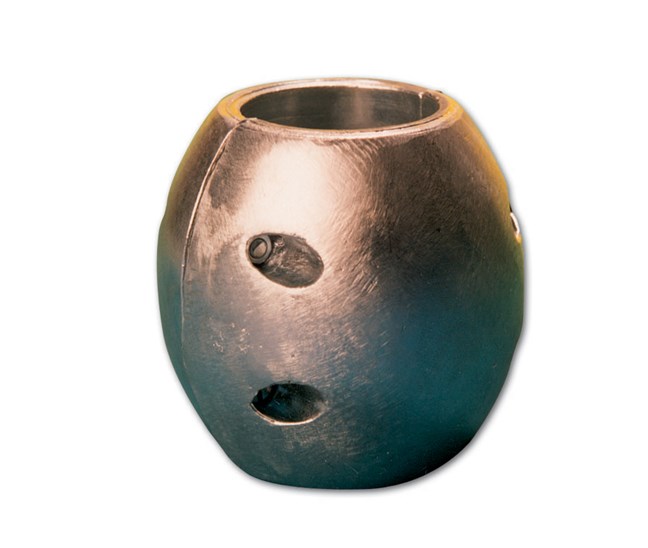

Hollex Aluminium Ball Propeller Shaft Anode with Steel Core – Ø22–60 mm
The Hollex Aluminium Ball Propeller Shaft Anode is a spherical sacrificial anode designed to protect boat propeller shafts against corrosion. Manufactured from aluminium and equipped with a steel core, it is suitable for use in brackish and saltwater environments.
The steel core helps prevent the anode from becoming loose around the shaft. The split ball-shaped construction allows the anode to be positioned around the propeller shaft. The range includes ten versions for shaft diameters from 22 to 60 mm, including a 25.4 mm (1") version.
Key Features
- Brand: Hollex
- Product Type: Sacrificial propeller shaft anode
- Material: Aluminium
- Core Material: Steel
- Shape: Ball / Spherical
- Design: Split ball-shaped anode
- Application: Boat propeller shafts
- Suitable Water Types: Brackish water and saltwater
- Shaft Diameter Range: 22–60 mm
- Available Sizes: 22, 25, 25.4, 30, 35, 38, 40, 45, 50 and 60 mm
- Function: Sacrificial corrosion protection for propeller shafts
- Sales Unit: 1 piece
Technical Specifications and Available Sizes
Product Number Shaft Diameter Material Shape 5977 22 mm Aluminium Ball 5979 25.4 mm (1") Aluminium Ball 5978 25 mm Aluminium Ball 5980 30 mm Aluminium Ball 5981 35 mm Aluminium Ball 5982 38 mm Aluminium Ball 5983 40 mm Aluminium Ball 5984 45 mm Aluminium Ball 5985 50 mm Aluminium Ball 5986 60 mm Aluminium Ball
Construction and Shaft Installation
The Hollex Ball Anode features a spherical aluminium body with a steel core. The steel core helps keep the anode securely positioned around the propeller shaft, preventing it from becoming loose.
- Aluminium Body: Provides sacrificial corrosion protection.
- Steel Core: Helps prevent loosening around the shaft.
- Split Construction: Allows positioning around the propeller shaft.
- Diameter Selection: Available in ten shaft diameter options from 22 to 60 mm.
Select the anode version corresponding to the diameter of the propeller shaft. The 25 mm and 25.4 mm (1") versions are separate product variants.
Corrosion Protection and Water Compatibility
The aluminium anode acts as a sacrificial component, corroding preferentially to help protect the propeller shaft and other metal components against corrosion.
These aluminium shaft anodes are suitable for brackish and saltwater environments.
The appropriate anode material depends on the water environment in which the vessel operates:
- Magnesium Anodes: Suitable for freshwater environments.
- Zinc Anodes: Suitable for saltwater environments.
- Aluminium Anodes: Suitable for brackish water environments and, for this Hollex shaft anode series, saltwater.
Product Identification
Product Number Shaft Diameter EAN Code 5977 22 mm 1957000029403 5979 25.4 mm (1") 1957000029410 5978 25 mm 1957000000761 5980 30 mm 1957000000273 5981 35 mm 1957000000853 5982 38 mm 1957000000877 5983 40 mm 1957000000891 5984 45 mm 1957000000921 5985 50 mm 1957000000945 5986 60 mm 1957000001058
Sales Unit: 1 aluminium shaft anode.
-
