ID
1400437
$ 51.81
1-2 weeks delivery time
-
+
E. Polipodio ZX013 zinc anode for hull applications, model FX-2, measuring 190 x 55 x 25 mm and weighing 1.60 kg. The anode features two mounting holes positioned 75 mm centre-to-centre, with Ø12x15 mm mounting-hole dimensions according to the catalogue drawing. Manufactured from zinc (ZN) and cross-referenced in the Trem catalogue as L8120257.
- Description
- Ask a Question
-
E. Polipodio ZX013 Zinc Anode for Hull – 190x55x25 mm, 1.6 kg
The E. Polipodio ZX013 is a zinc anode designed for hull applications. It is identified as model FX-2 and is cross-referenced in the Trem catalogue as L8120257.

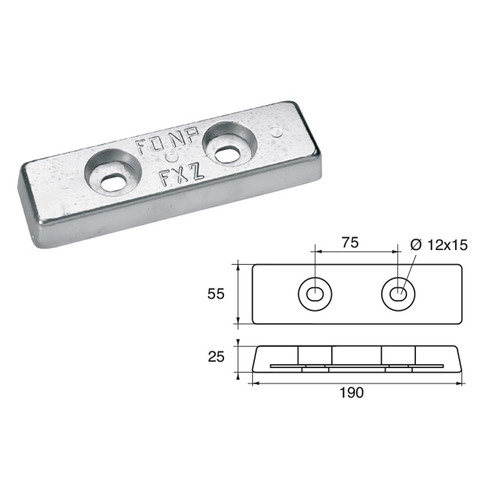

The anode measures 190 x 55 x 25 mm and weighs 1.60 kg. It features two mounting holes positioned 75 mm centre-to-centre. According to the catalogue drawing, the mounting-hole dimensions are Ø12x15 mm.
Technical Specifications
- Brand: E. Polipodio
- E. Polipodio Reference: ZX013
- Trem Reference: L8120257
- Model: FX-2
- Application: Hull
- Material: Zinc (ZN)
- Length: 190 mm
- Width: 55 mm
- Height: 25 mm
- Weight: 1.60 kg / 1600 g
- Mounting Holes: 2
- Hole Centre Spacing: 75 mm
- Mounting-Hole Dimensions: Ø12x15 mm
- EAN: 8024827644621
Dimensions for Selection
- Overall Size: 190 x 55 x 25 mm
- Hole Spacing: 75 mm centre-to-centre
- Mounting-Hole Dimensions: Ø12x15 mm
- Weight: 1.60 kg
For replacement selection, compare the overall dimensions, mounting-hole dimensions, 75 mm centre spacing and weight with the existing anode.
-
