ID
1400440
$ 124.45
1-2 weeks delivery time
Size:
- 140x40 Hole Ø14
- 136x55 Hole Ø16
- 120x35 Hole Ø14
E. Polipodio stern round flange anodes available in three dimensional configurations with outside diameters from Ø120 to Ø140 mm. NC069 measures Ø120 x 35 mm with Ø14 mm internal diameter, NC005 measures Ø136 x 55 mm with Ø16 mm internal diameter, and NC014 measures Ø140 x 40 mm with Ø14 mm internal diameter. The corresponding Trem references are L8100154, L8110150 and L8120214. Select the required version according to outside diameter, internal diameter and overall height.
- Description
- Ask a Question
-

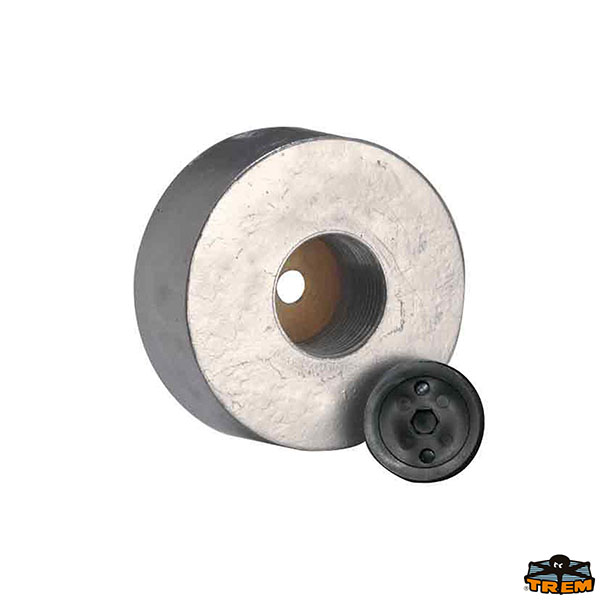

E. Polipodio Stern Round Flange Anodes – Ø120–140 mm
The E. Polipodio Stern Round Flange Anodes are available in three dimensional configurations with outside diameters from Ø120 to Ø140 mm.
The models differ in overall diameter, internal diameter and height. E. Polipodio references NC069, NC005 and NC014 correspond to Trem references L8100154, L8110150 and L8120214.
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Outside Diameter Internal Diameter Height H NC069 L8100154 Ø120 mm Ø14 mm 35 mm NC005 L8110150 Ø136 mm Ø16 mm 55 mm NC014 L8120214 Ø140 mm Ø14 mm 40 mm
E. Polipodio NC069 / Trem L8100154
- Outside Diameter: Ø120 mm
- Internal Diameter: Ø14 mm
- Height: 35 mm
- EAN: 8024827691656
E. Polipodio NC005 / Trem L8110150
- Outside Diameter: Ø136 mm
- Internal Diameter: Ø16 mm
- Height: 55 mm
- EAN: 8024827671009
E. Polipodio NC014 / Trem L8120214
- Outside Diameter: Ø140 mm
- Internal Diameter: Ø14 mm
- Height: 40 mm
- EAN: 8024827644454
Dimensions for Model Selection
- Ø: Overall outside diameter
- Ø int.: Internal diameter
- H: Overall height
Select the required stern round flange according to the outside diameter, internal diameter and overall height of the existing installation.
-
