The Stainless Steel 316 Long Link Chain is manufactured in accordance with DIN 763 and is designed for marine, industrial and general securing applications where excellent corrosion resistance is required. Produced from AISI 316 stainless steel, the chain is available in 3 mm to 10 mm diameters, all supplied in 30 m lengths. Not suitable for lifting or hoisting applications.
- Description
- Ask a Question
-

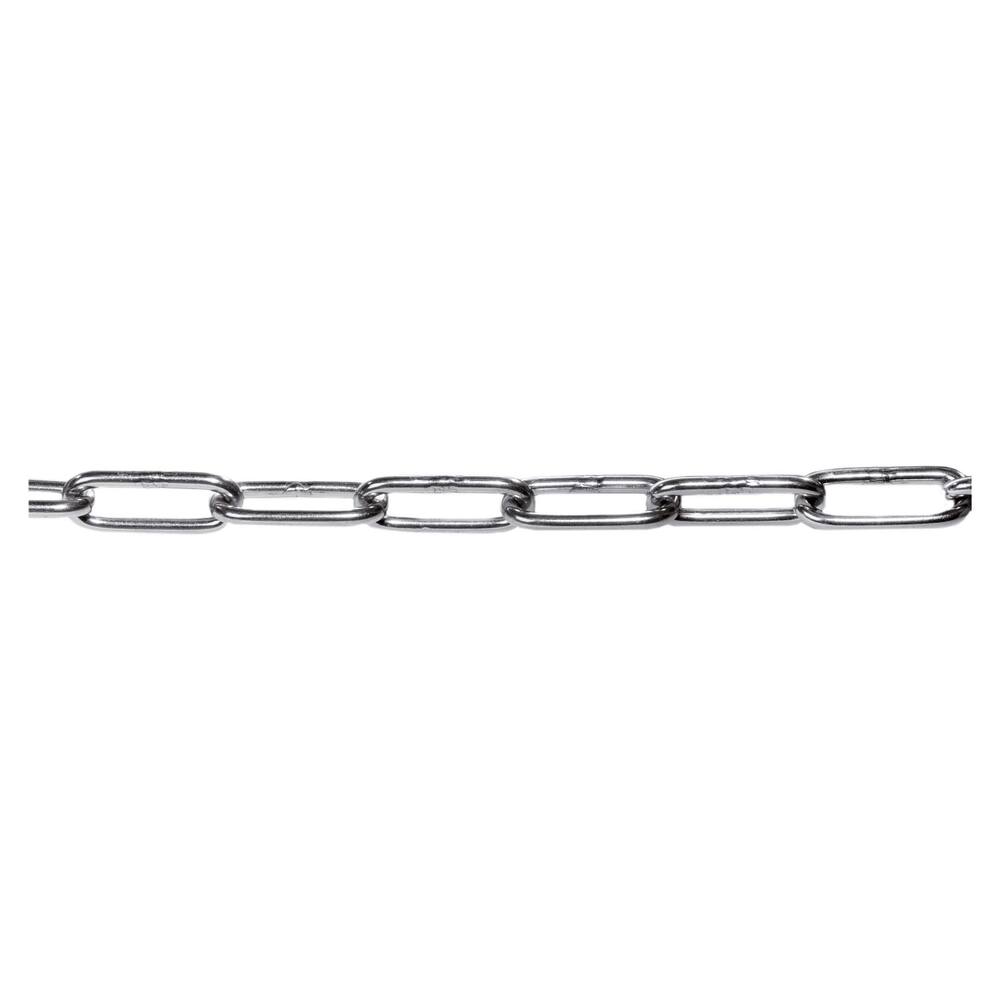

Chain Stainless Steel 316 Long Link DIN 763 – 3-10 mm, 30 m
The Chain Stainless Steel 316 Long Link DIN 763 is a high-quality general-purpose chain manufactured from premium AISI 316 stainless steel. Designed for excellent corrosion resistance, it is suitable for marine, industrial, agricultural, architectural and general securing applications where long service life is required.
Manufactured according to DIN 763 dimensions, the chain features a long link design that provides flexibility for a wide range of fastening and securing tasks. All variants are supplied in practical 30 metre reels with diameters ranging from 3 mm to 10 mm. Depending on the selected size, safe working loads range from 55 kg to 630 kg, while breaking loads range from 460 kg up to 5,115 kg.
Important: Although manufactured to DIN 763 dimensions, this chain must not be used for lifting or hoisting applications.
Features
- Manufactured from premium AISI 316 stainless steel
- Long link construction
- DIN 763 compliant
- Excellent corrosion resistance
- Suitable for marine and outdoor environments
- Supplied in 30 m reels
- Available in diameters from 3 mm to 10 mm
- Safe working load from 55 to 630 kg
- Breaking load from 460 to 5,115 kg
- Selected sizes include IMPA reference numbers
- Not suitable for lifting or hoisting
Available Variants
Product Code Diameter Internal Size Weight / m SWL Breaking Load Length IMPA 02.00.203 3 mm 26 × 6 mm 150 g 55 kg 460 kg 30 m — 02.00.204 4 mm 32 × 8 mm 270 g 100 kg 815 kg 30 m — 02.00.205 5 mm 36 × 10 mm 430 g 160 kg 1,275 kg 30 m — 02.00.206 6 mm 42 × 12 mm 630 g 200 kg 1,835 kg 30 m 231101 02.00.208 8 mm 54 × 16 mm 1,100 g 400 kg 3,270 kg 30 m 231102 02.00.210 10 mm 66 × 20 mm 1,750 g 630 kg 5,115 kg 30 m 231103 / 231104 -
