ID
1383012
$ 93.60
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 7
- 8
- 10
- 13
Length, m:
- 30
The Hot-Dip Galvanized Long Link Chain is manufactured in accordance with DIN 763 and is intended for general marine, industrial and securing applications. The chain features a durable hot-dip galvanized finish for excellent corrosion resistance and is available in diameters from 4 mm to 13 mm, all supplied in 30 m lengths. This chain is not certified or permitted for hoisting applications.
- Description
- Ask a Question
-

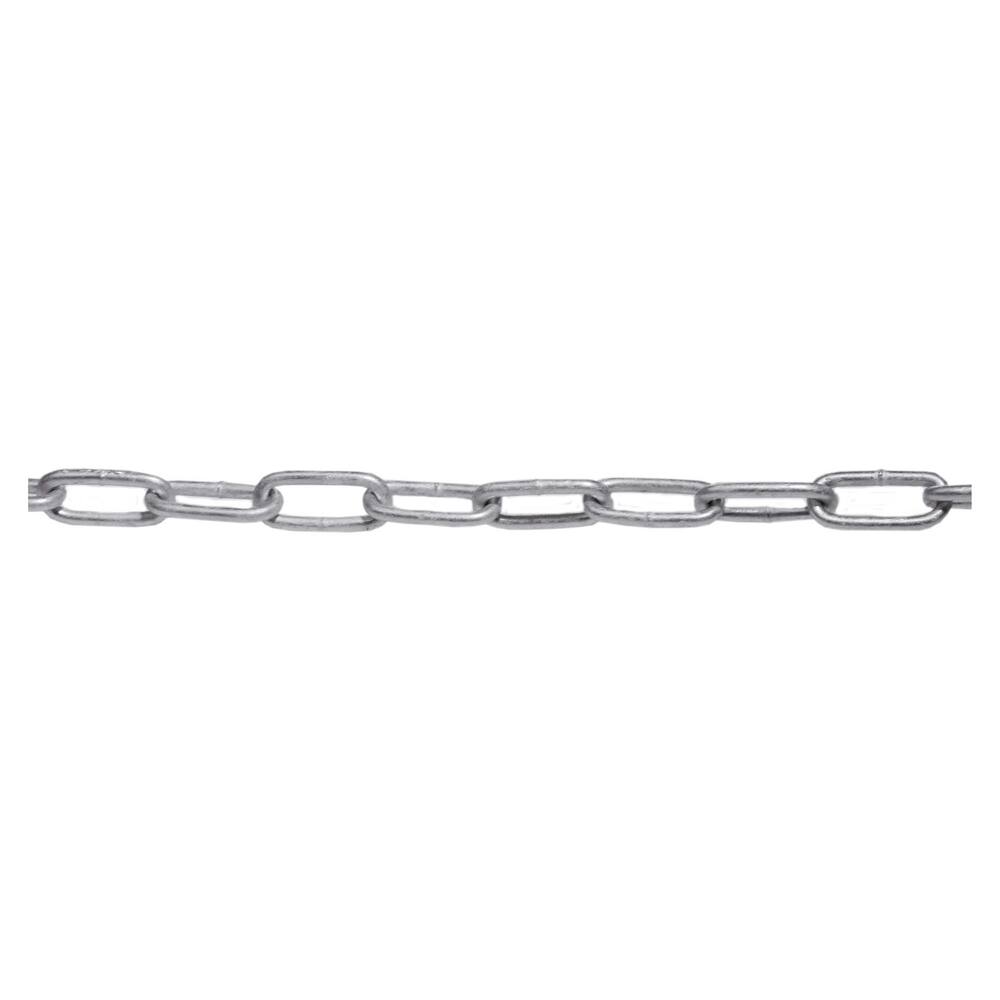

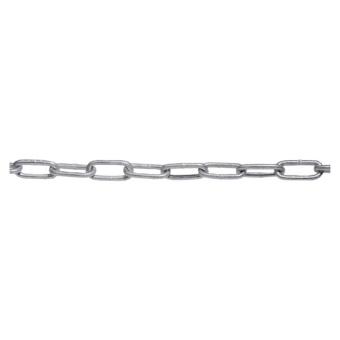

Chain Long Link Hot-Dip Galvanized DIN 763 – 4-13 mm, 30 m
The Chain Long Link Hot-Dip Galvanized DIN 763 is designed for general fastening, securing, mooring, agricultural, industrial, and marine applications where corrosion resistance and durability are required. Manufactured from hot-dip galvanized steel and produced according to DIN 763 dimensions, it provides reliable performance in indoor and outdoor environments.
The chain is supplied in convenient 30 metre reels and is available in seven diameters from 4 mm to 13 mm. Depending on the size selected, safe working loads range from 100 kg to 1,000 kg, while breaking loads range from 690 kg up to 6,520 kg. Selected variants also include IMPA references for commercial marine use.
Important: This chain complies with DIN 763 dimensions but must not be used for lifting or hoisting applications.
Features
- Long link chain
- Manufactured from hot-dip galvanized steel
- DIN 763 compliant
- Corrosion-resistant finish
- Supplied in 30 m reels
- Available in 4, 5, 6, 7, 8, 10 and 13 mm diameters
- Safe working load from 100 to 1,000 kg
- Breaking load from 690 to 6,520 kg
- Not suitable for lifting or hoisting
Available Variants
Product Code Diameter Internal Size Weight / m SWL Breaking Load Length IMPA 02.00.104 4 mm 32 × 8 mm 270 g 100 kg 690 kg 30 m — 02.00.105 5 mm 36 × 10 mm 430 g 160 kg 1,020 kg 30 m — 02.00.106 6 mm 42 × 12 mm 630 g 200 kg 1,220 kg 30 m 231101 02.00.107 7 mm 48 × 14 mm 860 g 300 kg 1,935 kg 30 m — 02.00.108 8 mm 54 × 16 mm 1,100 g 400 kg 2,550 kg 30 m 231102 02.00.110 10 mm 66 × 20 mm 1,750 g 630 kg 4,080 kg 30 m 231103 / 231104 02.00.113 13 mm 82 × 24 mm 2,950 g 1,000 kg 6,520 kg 30 m 231105 -
