ID
1383027
$ 112.32
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 7
- 8
- 10
- 13
Length, m:
- 30

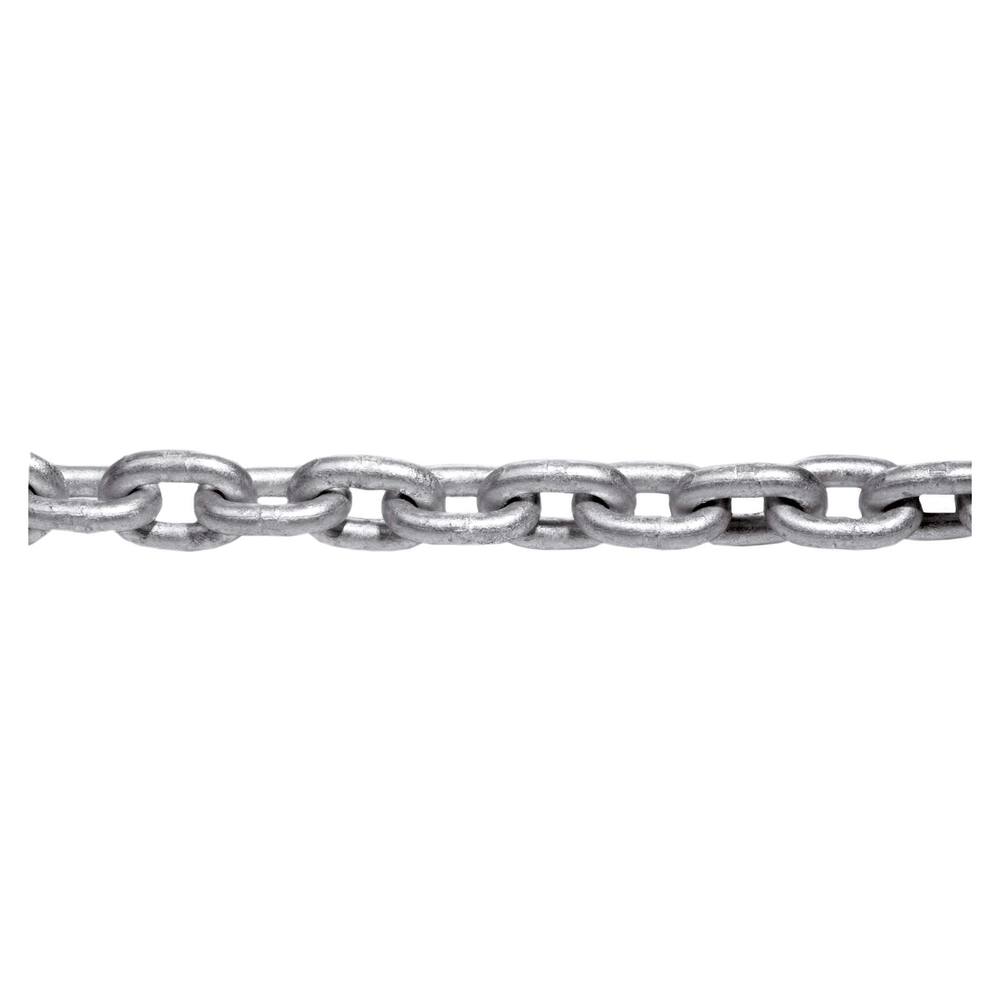

The Hot-Dip Galvanized Short Link Chain is manufactured in accordance with DIN 766 and is intended for marine, industrial and general securing applications. The chain features a compact short link design, is available in 4 mm to 13 mm diameters, and is supplied in 30 m lengths. The hot-dip galvanized finish provides excellent corrosion protection, while the short link construction makes the chain suitable for windlasses and applications requiring calibrated dimensions. Not approved for lifting or hoisting.
- Description
- Ask a Question
-

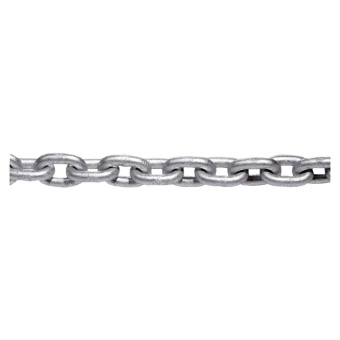

Chain Short Link Hot-Dip Galvanized DIN 766 – 4-13 mm, 30 m
The Chain Short Link Hot-Dip Galvanized DIN 766 is manufactured for general securing, marine, agricultural and industrial applications requiring a compact short link design and excellent corrosion resistance. Produced from hot-dip galvanized steel in accordance with DIN 766 dimensions, it is suitable for demanding outdoor environments.
The short link construction provides increased flexibility and secure handling for fastening, mooring and general-purpose applications. All variants are supplied in convenient 30 metre reels and are available in diameters from 4 mm to 13 mm. Depending on the selected size, safe working loads range from 200 kg to 2,000 kg, while breaking loads range from 815 kg up to 8,150 kg.
Important: Although manufactured according to DIN 766 dimensions, this chain must not be used for lifting or hoisting applications.
Features
- Short link chain
- Manufactured from hot-dip galvanized steel
- DIN 766 compliant
- Excellent corrosion resistance
- Suitable for marine and outdoor use
- Supplied in 30 m reels
- Available in diameters from 4 mm to 13 mm
- Safe working load from 200 kg to 2,000 kg
- Breaking load from 815 kg to 8,150 kg
- Selected variants include IMPA reference numbers
- Not suitable for lifting or hoisting
Available Variants
Product Code Diameter Internal Size Weight / m SWL Breaking Load Length IMPA 02.00.304 4 mm 16 × 6 mm 320 g 200 kg 815 kg 30 m — 02.00.305 5 mm 18.5 × 7 mm 500 g 320 kg 1,275 kg 30 m — 02.00.306 6 mm 18.5 × 8 mm 750 g 400 kg 1,630 kg 30 m 231111 02.00.307 7 mm 22 × 9 mm 1,000 g 630 kg 2,550 kg 30 m — 02.00.308 8 mm 24 × 10 mm 1,350 g 800 kg 3,260 kg 30 m 231112 02.00.310 10 mm 28 × 14 mm 2,200 g 1,250 kg 5,100 kg 30 m 231113 / 231114 02.00.313 13 mm 36 × 18 mm 3,800 g 2,000 kg 8,150 kg 30 m 231115 -
