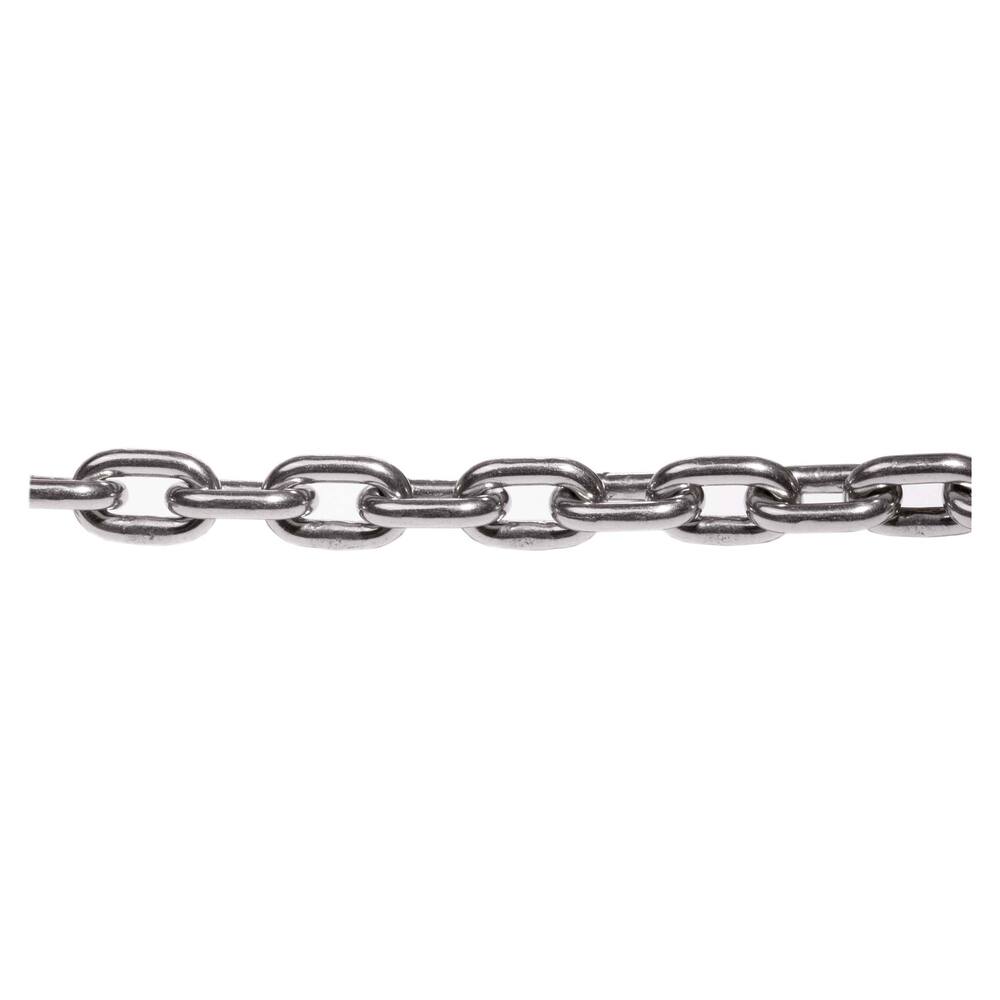

Chain Short Link Stainless Steel 316 DIN 766 – 3-10 mm, 30 m Reel
The Chain Short Link Stainless Steel 316 is manufactured from premium marine-grade AISI 316 stainless steel for maximum corrosion resistance in marine, offshore and industrial environments. Manufactured to DIN 766 dimensions, the short-link construction is suitable for anchor systems, mooring applications, securing equipment and general marine use.
Each chain is supplied in a 30 metre reel and combines excellent strength with long service life in harsh environments. Depending on the selected diameter, safe working loads range from 55 kg to 1,250 kg and breaking loads from 460 kg to 5,115 kg. Selected variants include IMPA reference numbers for professional marine procurement.
Important: Although manufactured to DIN 766 dimensions, this chain is intended for securing and marine applications only and must not be used for lifting or hoisting.
Key Features
- Marine-grade AISI 316 stainless steel
- Short link construction
- Manufactured to DIN 766 dimensions
- Excellent corrosion resistance
- Supplied in 30 m reels
- Available in diameters from 3 mm to 10 mm
- Safe working load from 55 kg to 1,250 kg
- Breaking load from 460 kg to 5,115 kg
- Selected variants include IMPA reference codes
- Not suitable for lifting or hoisting applications
Available Variants
Product Code Diameter Length Material Safe Working Load Breaking Load IMPA 02.00.403 3 mm 30 m AISI 316 Stainless Steel 55 kg 460 kg — 02.00.404 4 mm 30 m AISI 316 Stainless Steel 200 kg 815 kg — 02.00.405 5 mm 30 m AISI 316 Stainless Steel 320 kg 1,275 kg — 02.00.406 6 mm 30 m AISI 316 Stainless Steel 400 kg 1,835 kg 231111 02.00.408 8 mm 30 m AISI 316 Stainless Steel 800 kg 3,270 kg 231112 02.00.410 10 mm 30 m AISI 316 Stainless Steel 1,250 kg 5,115 kg 231113 / 231114 -
