ID
1300734
$ 7,321.63
1-2 weeks delivery time
-
+
The Maxwell VWC 3500 vertical windlass (Vetus P105117) is a 24V electric anchor windlass with a 1200W motor and a 200TDC clockwise (CW) chainwheel, designed for automatic vertical handling of 10–13 mm chain rodes with an integrated warping drum for auxiliary rope handling. It delivers a maximum pulling force of approximately 1590 kg, a static holding capacity around 2200 kg, a working line speed of about 15 m/min, and weighs approximately 42 kg for the electric drive version, making it a robust choice for demanding anchoring and docking applications.
- Description
- Ask a Question
-

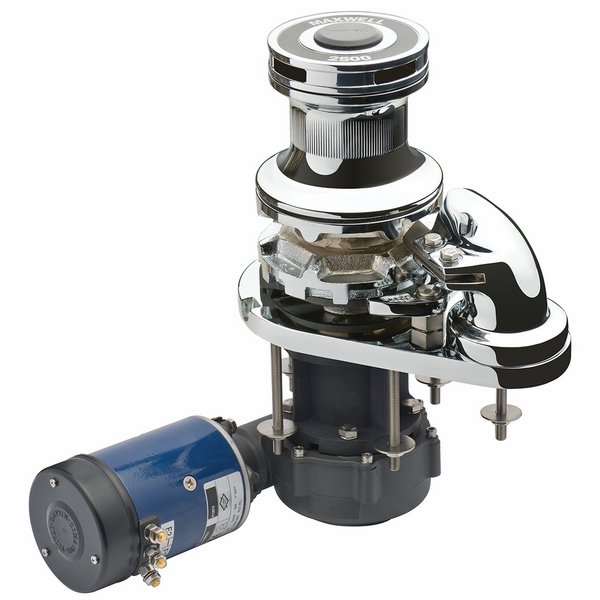

Maxwell VWC 3500 Vertical Windlass 1200W 24V with Warping Drum (200TDC CW)
The Maxwell VWC 3500 vertical windlass (Vetus P105117) is engineered for automatic vertical handling of chain-only anchor rodes on marine vessels. This electric windlass operates on a 24V system with a 1200W motor and features a 200TDC clockwise (CW) chainwheel with an integrated warping drum for auxiliary rope handling and docking assistance. Built with marine-grade materials and robust engineering, it delivers high pulling capacity and reliable performance in demanding marine environments. :contentReference[oaicite:2]{index=2}
Key Features
- Vertical windlass designed for automatic handling of chain-only anchor rodes
- Integrated warping drum for auxiliary rope hauling and docking support
- 200TDC clockwise (CW) chainwheel configuration
- Fully automatic single or dual direction chainwheel operation
- Above-deck components manufactured from marine-grade stainless steel (AISI 316)
- Integral chain pipe and stripper aligned for jam-free chain feed
- Cone-type brake/clutch mechanism permitting manual free-fall anchoring
- Chainwheel locking pawl for secure anchoring control
- Modular through-deck installation for precise and robust fit
- Anodized aluminium gearbox and spacer tube for corrosion resistance
- Heavy-duty electric motor designed for marine winch applications
Technical Specifications
Parameter Value Article Number P105117 Model VWC 3500 Voltage 24 V Motor Power 1200 W Chainwheel 200TDC, CW Rode Type Chain (10–13 mm) Warping Drum Included Maximum Pull / Lift ~1590 kg (3500 lb) Static Holding Force ~2200 kg (4840 lb) Line Speed (Normal Working) ~15 m/min (50 ft/min) Net Weight (Electric Drive) ~42 kg (93 lb)
Construction and Installation
- Marine-grade stainless steel fasteners and components for enhanced corrosion resistance
- Modular through-deck installation with precise alignment of gearbox and topworks
- Durable mechanical design suitable for demanding marine environments
-
