The Maxwell 3500 VWC vertical anchor windlass with drum (Vetus P105118) is a robust 24 V DC electric anchoring system featuring a 1200 W motor for efficient anchor handling and retrieval, anticlockwise (ACW) operation, and compatibility with 10 mm–13 mm chain sizes. Designed with durable marine-grade construction and a high static holding capacity, this windlass delivers reliable performance for vessels typically between 14 m and 21 m in length.
- Description
- Ask a Question
-

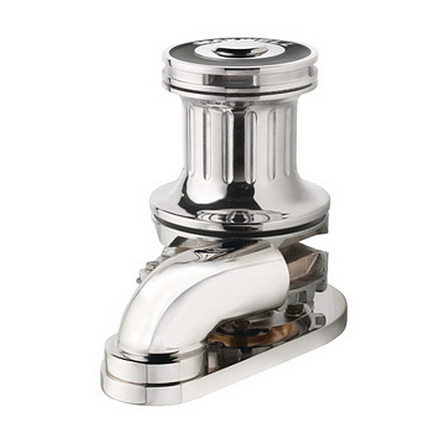

Maxwell 3500 VWC Vertical Anchor Windlass with Drum, 24V, 1200W, ACW (Vetus P105118)
The Maxwell 3500 VWC Vertical Anchor Windlass with Drum is engineered for reliable and efficient anchor deployment and retrieval on medium to large recreational and commercial vessels. This 24 V DC electric vertical windlass combines a powerful motor with a robust drum design for mixed rope and chain handling, providing dependable operation in demanding marine conditions.
Key Features
- Vertical electric windlass with integrated drum for rope and chain
- Anticlockwise (ACW) rotation direction for secure anchoring
- High-efficiency 1200 W DC motor (24 V)
- Constructed from durable materials suitable for harsh marine environments
- Designed for vessels typically 14 m to 21 m in length
- Quiet operation and smooth anchor handling
Electrical Specifications
Parameter Specification Power Supply 24 V DC Motor Power 1200 W Rotation Direction ACW (anticlockwise)
Mechanical Specifications
Specification Value Model 3500 VWC Chain Compatibility 10 mm – 13 mm Working Load (TDC) 200 Lifting Speed Approx. 15 m/min (normal working) :contentReference[oaicite:1]{index=1} Static Holding Capacity 2200 kg (approx) :contentReference[oaicite:2]{index=2} Breaking Load 1590 kg (approx) :contentReference[oaicite:3]{index=3} Material (above deck) Marine-grade corrosion-resistant metal :contentReference[oaicite:4]{index=4}
Performance and Usage
- Suitable for automatic anchor handling and retrieval
- High static holding capacity enhances anchoring security
- Efficient operation with minimal vibration and noise
- Ideal for anchoring systems on yachts and larger recreational vessels
Installation Recommendations
- Vertical installation through deck with motor assembly below deck
- Correct chainwheel selection required to match chain size
- Electrical wiring must conform to 24 V DC marine standards
-
