ID
1282172
$ 7,360.70
1-2 weeks delivery time
-
+

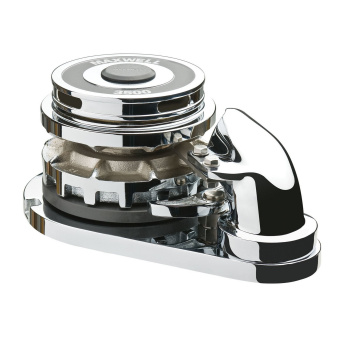

The Maxwell 3500 VWCLP hydraulic vertical anchor windlass, anticlockwise (ACW), (Vetus P105135) is a high-quality marine anchoring system designed for vertical handling of chain-only anchor rodes with a 100 TDC working load capacity. This hydraulic-powered windlass provides smooth and reliable chainwheel operation with robust marine-grade construction, independent capstan functionality and compatibility with 10–13 mm chain sizes, making it suitable for medium to large vessels requiring consistent anchoring performance.
- Description
- Ask a Question
-
Maxwell 3500 VWCLP Hydraulic Vertical Anchor Windlass, ACW, 100TDC (Vetus P105135)
The Maxwell 3500 VWCLP Hydraulic Vertical Anchor Windlass with anticlockwise (ACW) chainwheel is engineered for dependable chain-only anchor handling on marine vessels. Featuring a hydraulic drive and heavy-duty construction, this vertical windlass delivers consistent performance in demanding anchoring conditions. Designed for 10–13 mm chain compatibility and a working load capacity of 100 TDC, this model offers durability and reliable operation with an independent capstan that facilitates secondary rope or chain handling tasks. :contentReference[oaicite:1]{index=1}
Key Features
- Hydraulic vertical anchor windlass for automatic chain-only operations
- Anticlockwise (ACW) chainwheel rotation
- Independent capstan for secondary rope/chain handling or docking assistance
- Marine-grade materials and corrosion-resistant finish on above-deck components
- Robust cone-type brake/clutch mechanism for smooth control
- Simple modular through-deck installation
Hydraulic Specifications
Parameter Specification Drive Type Hydraulic Hydraulic Flow Requirement Approx. 42 L/min Hydraulic Pressure Approx. 138 bar
Mechanical Specifications
Specification Value Model 3500 VWCLP Working Load Capacity (TDC) 100 Chain Size Compatibility 10 mm – 13 mm Sprocket 3182/XXX compatible Configuration VWCLP – Vertical Windlass, Low Profile
Performance and Usage
- Designed for smooth and controlled hydraulic anchor chain handling
- Independent capstan enables assisting secondary line tasks
- Suitable for medium to large recreational and commercial vessels
- Marine-grade build ensures long-term performance in harsh conditions
Installation and Operation Notes
- Requires through-deck vertical mounting with appropriate reinforcement
- Hydraulic supply must meet specified flow and pressure requirements
- Ensure matching sprocket and chain dimensions during installation
-
