ID
1300732
$ 7,245.53
1-2 weeks delivery time
-
+
The Maxwell VWC 3500 vertical windlass (Vetus P105112) is a 24V electric anchor windlass with a 1200W motor and a 100TDC anti-clockwise (ACW) chainwheel, designed for automatic vertical handling of 10–13 mm chain rodes with an integrated warping drum for auxiliary rope handling. It delivers a high pulling capacity typical of the 3500 series with robust construction for demanding anchoring applications.
- Description
- Ask a Question
-

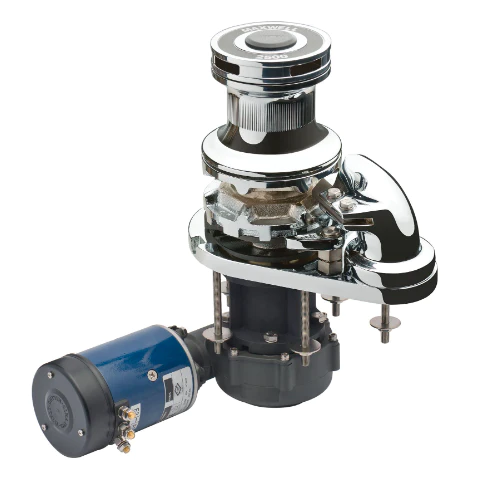

Maxwell VWC 3500 Vertical Windlass 1200W 24V with Warping Drum (100TDC ACW)
The Maxwell VWC 3500 vertical windlass (Vetus P105112) is engineered for automatic vertical handling of chain-only anchor rodes on marine vessels. Powered by a 1200W 24V electric motor and equipped with a 100TDC anti-clockwise (ACW) chainwheel, this unit features an integrated warping drum for auxiliary rope handling and docking support. Built with marine-grade materials and robust engineering, it delivers high performance and reliability in challenging seafaring conditions. :contentReference[oaicite:2]{index=2}
Key Features
- Electric vertical windlass designed for automatic chain-only anchor handling
- Integrated warping drum for auxiliary rope hauling and docking assistance
- 100TDC anti-clockwise (ACW) chainwheel configuration
- Fully automatic single or dual direction chainwheel operation
- Above-deck components made from marine-grade stainless steel (AISI 316)
- Integral chain pipe and stripper aligned for smooth, jam-free chain feed
- Cone-type brake/clutch mechanism for smooth manual free-fall anchoring control
- Chainwheel locking pawl for secure anchoring operation
- Modular through-deck installation for precision alignment and ease of fit
- Anodized aluminium gearbox and spacer tube for corrosion resistance
- Heavy-duty motor designed for continuous marine use
Technical Specifications
Parameter Value Article Number P105112 Model VWC 3500 Voltage 24 V Motor Power 1200 W Chainwheel 100TDC, ACW Rode Type Chain (10–13 mm short link) Warping Drum Included Maximum Pull / Lift ~1590 kg (3500 lb) typical for series Static Holding Force ~2200 kg (4840 lb) typical for series Line Speed (Normal Working) ~15 m/min (50 ft/min) typical for series Net Weight (Electric DC) ~48 kg (105 lb) typical for series
Construction and Installation
- Marine-grade stainless steel fasteners and components for enhanced corrosion resistance
- Modular through-deck installation with precise gearbox alignment
- Robust mechanical design suitable for heavy-duty marine anchoring tasks
-
