The Maxwell RC12-HD Hydraulic Windlass (P104992) is a vertical rope/chain windlass designed for 10–13 mm short link chain and 18–24 mm nylon rope. Featuring a hydraulic drive, 100 mm total deck clearance (TDC) and a maximum pull capacity of 1200 kg, this model is intended for high-duty marine anchoring applications without an integrated drum.
- Description
- Ask a Question
-

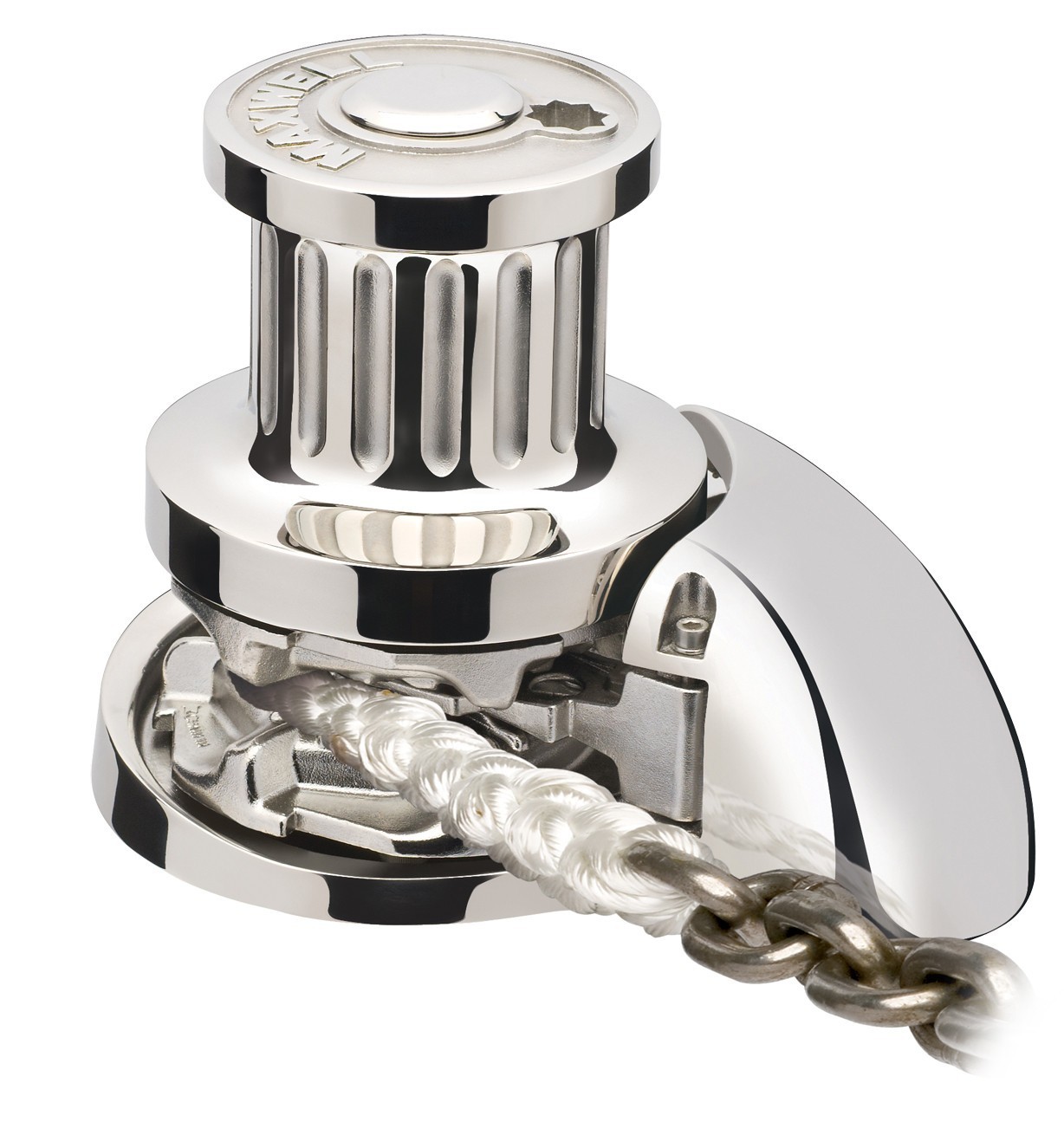

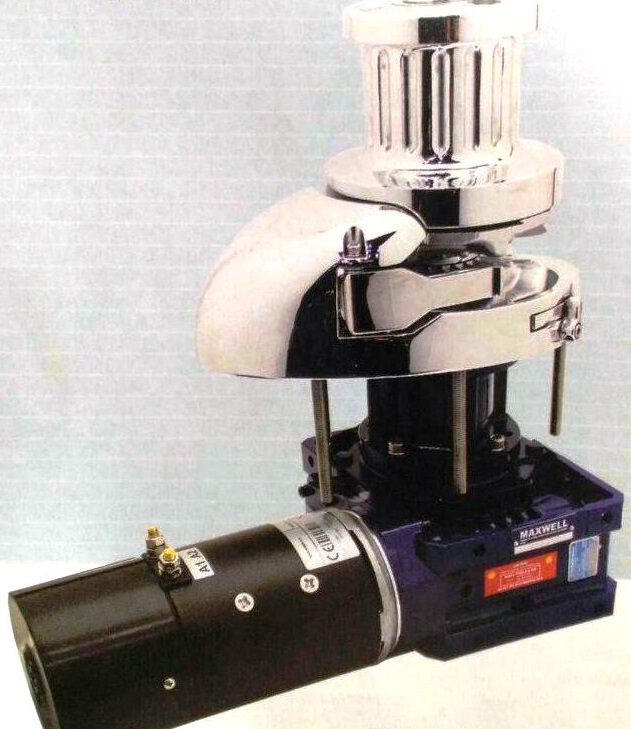

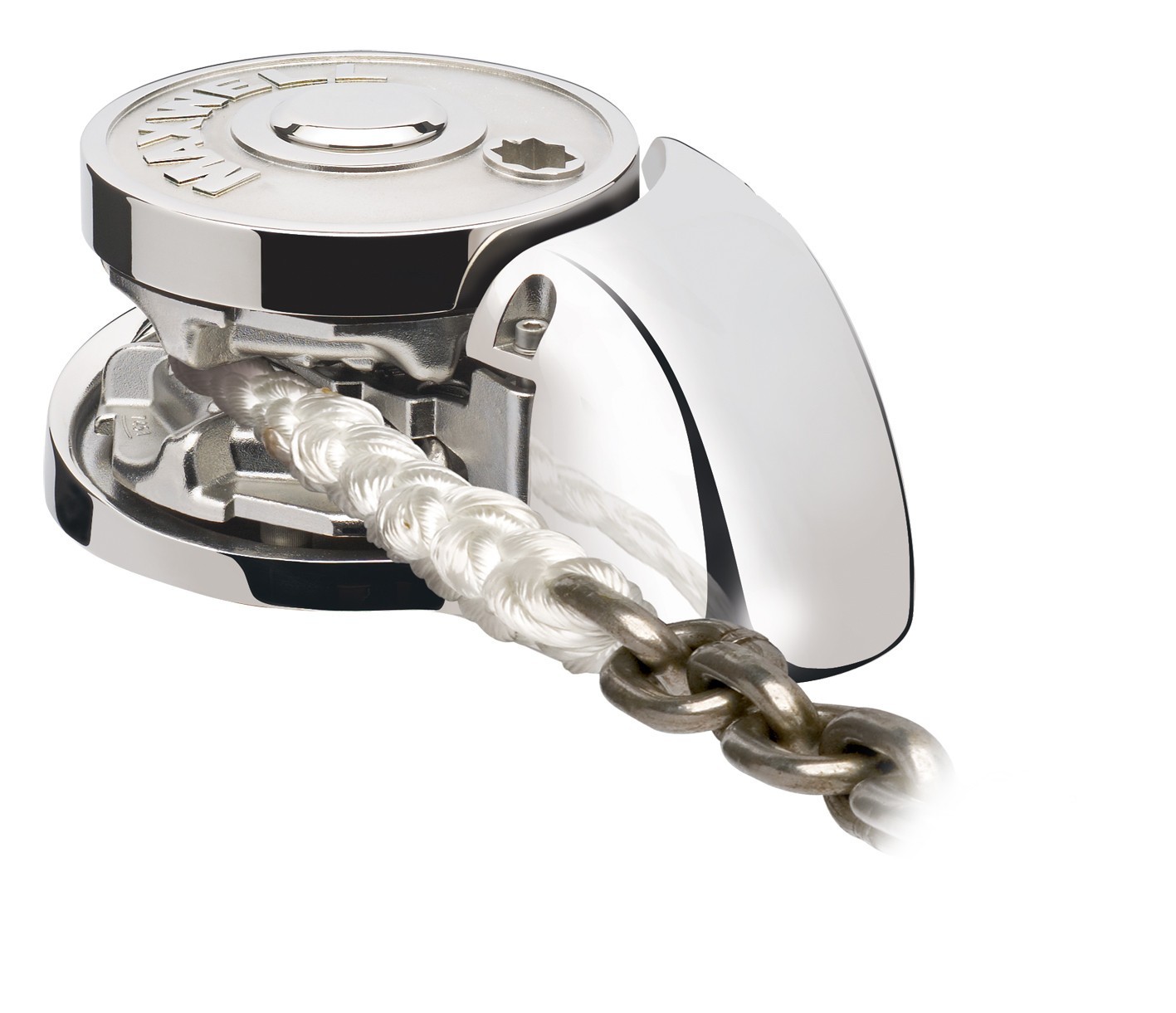

Maxwell RC12-HD Hydraulic Vertical Windlass for 11–12 mm Chain
The Maxwell RC12-HD Hydraulic is a heavy-duty vertical windlass engineered for vessels requiring high service speeds and reliable anchoring performance. Its configuration is particularly suited to patrol and professional vessels, where the use of combined rope and chain rodes helps reduce weight at the bow and improve overall vessel balance.
This model is designed for use with 10 mm to 13 mm short link chain and 18 mm to 24 mm nylon rope. The motor and gearbox sizing meets typical Classification Society test requirements for 12.5 mm U1 stud link chain, ensuring compatibility with demanding marine anchoring standards.
The RC12-HD platform incorporates a robust drivetrain concept and features Maxwell’s patented Wave Design™ chainwheel, providing smooth chain engagement and secure operation. The hydraulic drive version is intended for installations where consistent performance under load is required. This configuration is supplied without a drum and is optimized for chainwheel-only operation.
Key Features
- Vertical hydraulic windlass configuration
- Designed for combined rope and chain anchoring systems
- Wave Design™ chainwheel for smooth chain handling
- Optimized for reduced foredeck weight
- Chainwheel-only configuration without drum
Technical Specifications
Parameter Specification Model Reference P104992 Manufacturer Series RC12-HD Drive Type Hydraulic Operating Voltage 0 V Installation Orientation Vertical Rope / Chain Operation Rope / Chain Drum No Total Deck Clearance (TDC) 100 mm Maximum Pull / Lift 1200 kg Nominal Chain Diameter 11 mm Rope Diameter 16–20 mm
Typical Applications
- Patrol and professional vessels
- Marine installations with hydraulic power systems
- Anchoring systems using mixed rope and chain rodes
- Vertical windlass deck installations
-
