ID
1300720
$ 4,456.56
1-2 weeks delivery time
-
+
The Maxwell VWLP 1500 hydraulic anchor windlass (article Vetus P100446) is a vertical hydraulic windlass designed for traditional rope and chain anchor rodes in sailing boats with limited anchor locker space. Featuring a 50TDC chainwheel configuration, fully hydraulic drive and robust marine-grade construction, it provides reliable anchoring performance and manual rode handling suited for a wide range of vessels.
- Description
- Ask a Question
-

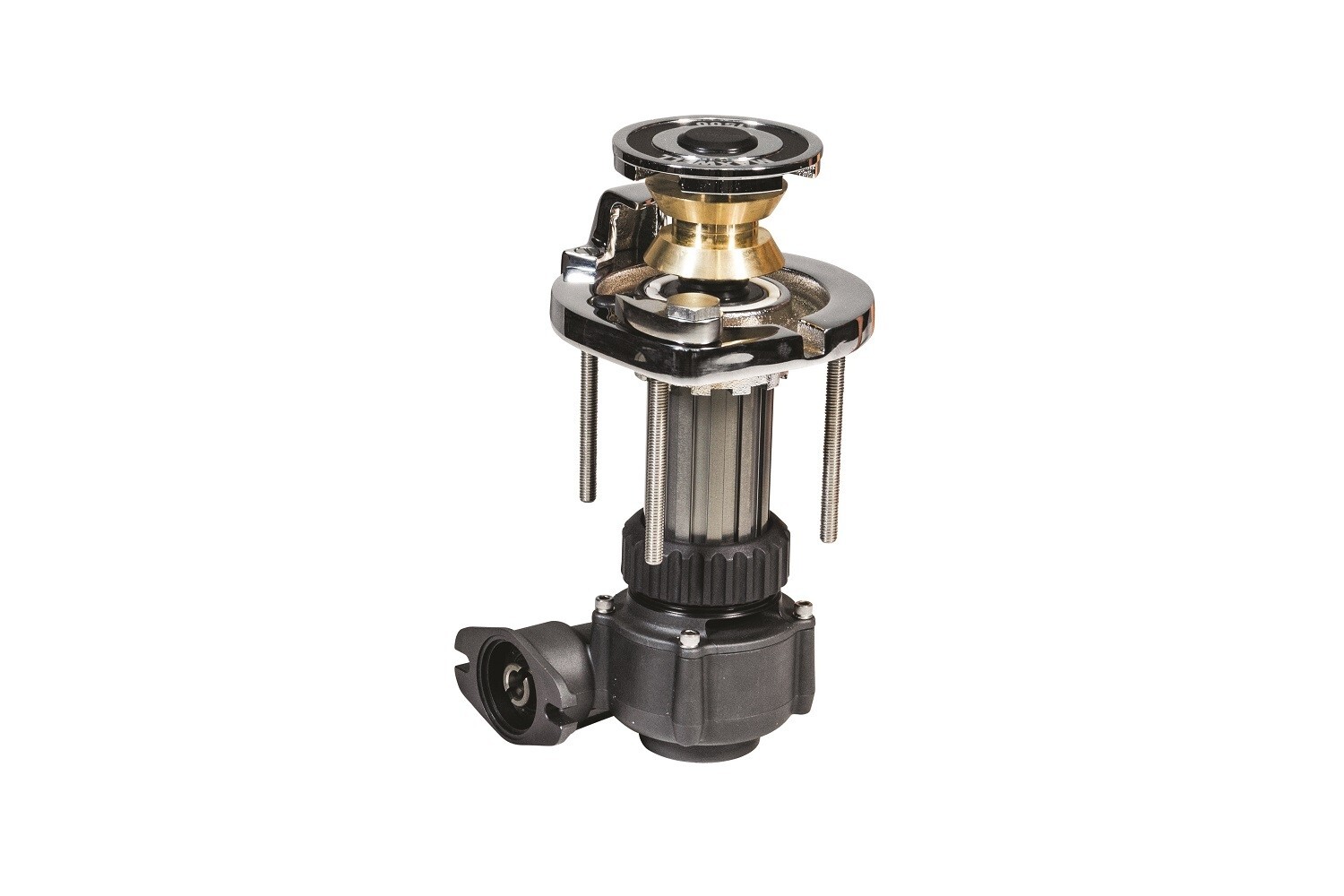

Maxwell VWLP 1500 Vertical Hydraulic Anchor Windlass 50TDC (Vetus P100446)
The Maxwell VWLP 1500 hydraulic anchor windlass is engineered for sailing vessels requiring compact, high-performance anchoring solutions. Designed for traditional rope and chain combination anchor rodes, it requires manual transfer of the rode from the warping drum to the chainwheel. The vertical configuration and modular design allow flexible installation in confined anchor lockers, and the hydraulic drive system delivers smooth, powerful performance for marine anchoring tasks.
Design and Functional Features
- Designed for traditional rope and chain anchor rodes with manual transfer to the chainwheel
- Provides versatility to operate two anchors from one windlass unit
- Functional rope hauling from any direction using independent MAX-grip™ snag-free warping drum
- Chainwheel clutch disengagement for positive control of rope and chain
- Supports traditional shackle and thimble rope-to-chain connections
- Vertical configuration suitable for installation in compact anchor locker spaces
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316) and chromed bronze
- Anodized aluminium gearbox and spacer for enhanced corrosion resistance and durability
- Marine-grade stainless steel fasteners ensuring precise alignment and secure assembly
- Hydraulic drive system optimized for dependable anchoring performance
Brake and Control System
- Cone-type brake and clutch mechanism permitting manual free-fall anchoring
- Smooth progressive clutch engagement ensuring controlled anchoring operation
- Chainwheel locking pawl for secure anchoring control
Installation and Maintenance
- Modular design simplifies through-deck installation
- Allows horizontal mounting on fore-and-aft bulkheads inside the chain locker
- Easily disassembled construction for servicing and routine maintenance
Technical Specifications
Parameter Specification Drive Type Hydraulic Configuration Vertical Rode Type Chain Warping Drum No Chain Sprocket 50TDC Supported Chain Size 6 – 10 mm Weight (approx.) 15–22 kg (typical for hydraulic VWLP series) Maximum Pull / Lift Approx. 850 kg (typical for VW 1500 series) -
