ID
1300762
$ 22,427.59
1-2 weeks delivery time
-
+
The Maxwell 3500 HWVC Horizontal Windlass Dual Chainwheel 12V 1200W (Vetus P106524) is a powerful marine anchoring system equipped with a 1200 W, 12 V DC motor designed for horizontal deck installation. Featuring a dual chainwheel configuration and independent capstan capabilities for auxiliary rope/chain handling, it delivers durable, smooth performance and is suited for automatic handling of standard 10–13 mm anchor chain.
- Description
- Ask a Question
-

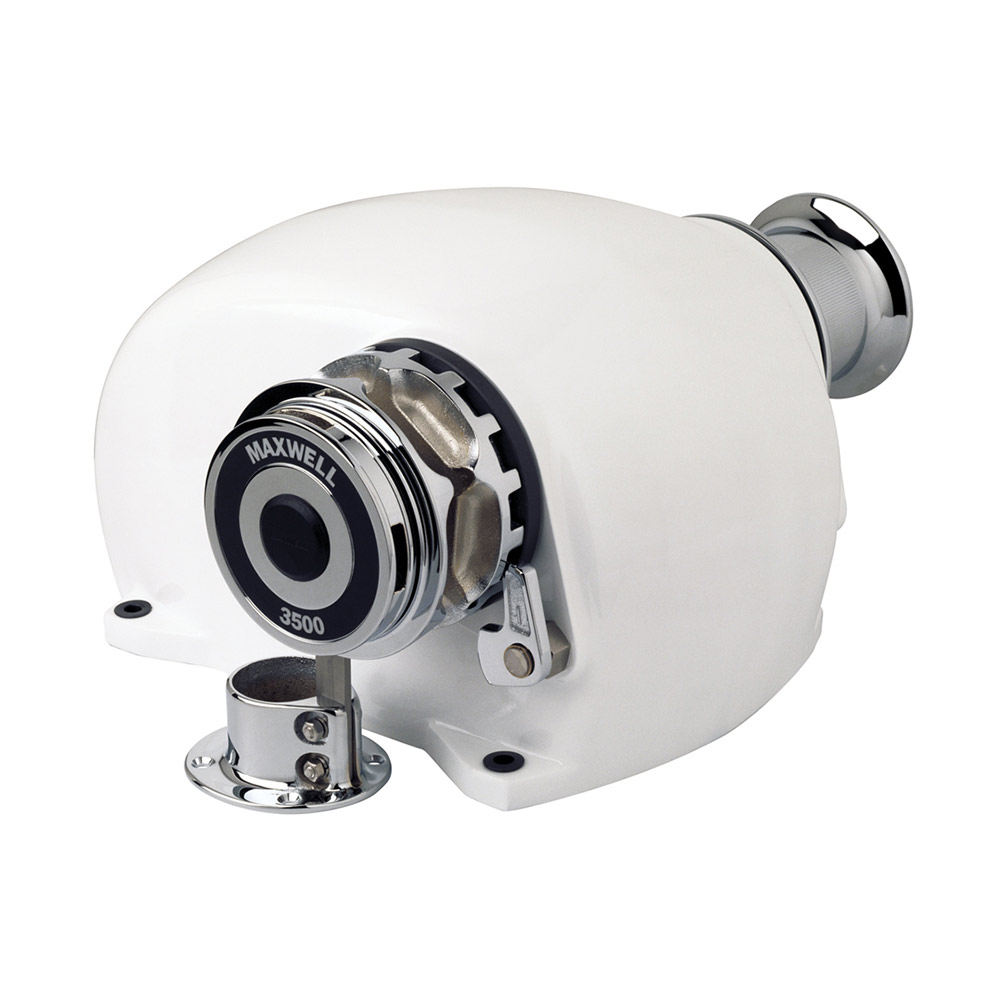

Maxwell 3500 HWVC Horizontal Windlass Dual Chainwheel 12V 1200W (Vetus P106524)
Specification Details Model 3500 HWVC Dual Chainwheel Article Number Vetus P106524 Power Supply 12 V DC Motor Power 1200 W Configuration Horizontal windlass with dual chainwheel and independent capstan Chain Size Compatibility 10–13 mm (3/8″–1/2″) Maximum Pull Capacity Approx. 1590 kg (3500 lb) Line Speed (Normal Working) Approx. 15 m/min (50 ft/min) Net Weight (DC) Approx. 94.5 kg (208 lb)*
Technical Features
- 12 V DC horizontal windlass for automatic chain handling with robust 1200 W motor
- Dual chainwheel configuration allows simultaneous rope/chain operations
- Independent capstan enables auxiliary rope retrieval and docking support
- Designed for use with marine anchor chain sizes 10–13 mm
- Durable marine construction suited for harsh saltwater environments
Applications
- Main anchor handling on leisure and commercial vessels
- Horizontal deck installation with automatic chain and rope management
- Suitable for medium to large boats requiring robust anchoring performance
-
