ID
1380243
$ 1,944.29
1-2 weeks delivery time
Diameter, mm:
- 8
Voltage:
- 12V
Power, W
- 1000
- 1500
Item:
- Without drum

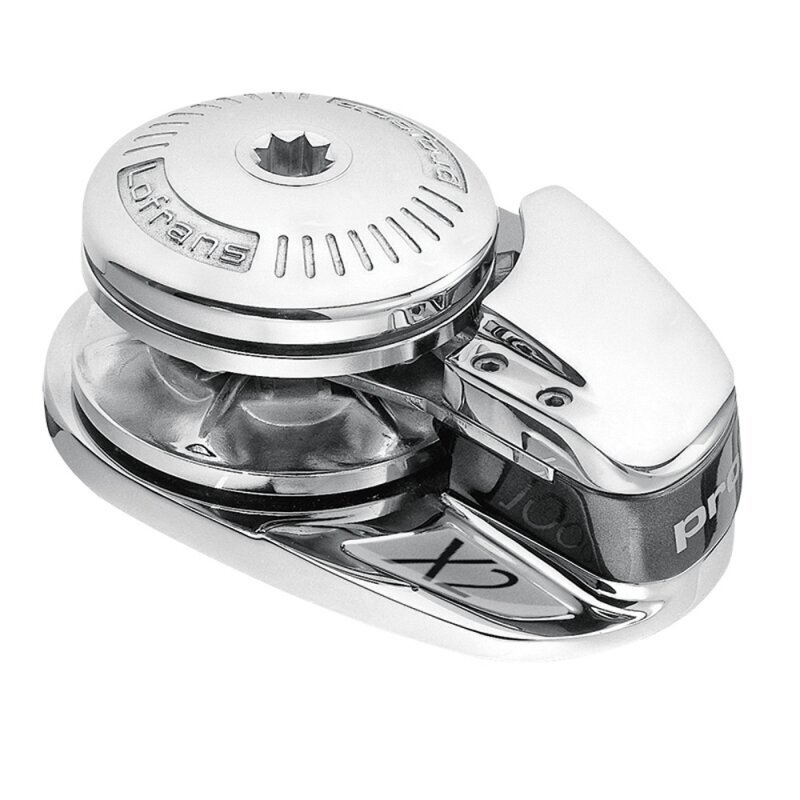

The Lofrans X2 Aluminium Low Profile Vertical Windlass is a compact electric anchor windlass for boats 10–13 metres. Built from marine-grade anodised aluminium alloy, it features a low-profile design with a single combination gypsy for 8 mm calibrated chain and 14 mm anchor rope. An integrated rope-retention system ensures smooth rope-to-chain transition during operation. This product range includes 1000W and 1500W 12V versions, both supplied complete with a control box and manual operating handle.
- Description
- Ask a Question
-
Lofrans X2 Vertical Windlass Aluminium Low Profile 12V – 8 mm Chain / 14 mm Rope
The Lofrans X2 Aluminium Low Profile is a professional vertical electric anchor windlass designed for boats from 10 to 13 metres. Manufactured from marine-grade anodised aluminium alloy, it combines excellent corrosion resistance with reduced weight and a compact installation profile.
The windlass features a single combination gypsy suitable for 8 mm calibrated anchor chain and 14 mm anchor rope. An integrated rope-retention mechanism keeps the rope engaged with the gypsy, ensuring smooth transition between rope and chain during anchoring. Every windlass is supplied complete with a control box and manual operating handle.
Key Features
- Low-profile vertical electric windlass.
- Marine-grade anodised aluminium alloy construction.
- Single gypsy for rope and chain.
- Compatible with 8 mm calibrated chain and 14 mm anchor rope.
- Integrated rope-retention system.
- Available with 1000 W or 1500 W 12 V motors.
- Supplied with control box and operating handle.
- Recommended for boats from 10 to 13 metres.
Technical Specifications
Specification 1000 W Version 1500 W Version Lofrans Part No. 472557 601053 SKU 0303823 0303851 Motor Power 1000 W 1500 W Voltage 12 V DC 12 V DC Maximum Pull 1000 kg 1200 kg Recovery Speed 26–35 m/min 17–40 m/min Chain Compatibility 8 mm calibrated chain 8 mm calibrated chain Rope Compatibility 14 mm 14 mm Recommended Boat Length 10–13 m 10–13 m Material Marine-grade anodised aluminium alloy Marine-grade anodised aluminium alloy Weight 20 kg 20 kg Included Control box and operating handle Control box and operating handle
Dimensions
Dimension Value B 25 / 40 mm C 155 mm E 95 mm F 232 mm G 73 mm H 260 mm I 162 mm J 134 mm -
