ID
1380270
$ 1,741.64
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
The Lofrans XP800 Vertical Windlass is a compact 500W 12V electric anchor windlass designed for boats up to 11 metres. Featuring an integrated electric brake to securely hold the anchor when not in operation, the XP800 is supplied complete with a control box and manual operating handle. The range includes versions for 6 mm or 8 mm calibrated chain, with compatible rope sizes depending on the gypsy configuration.
- Description
- Ask a Question
-

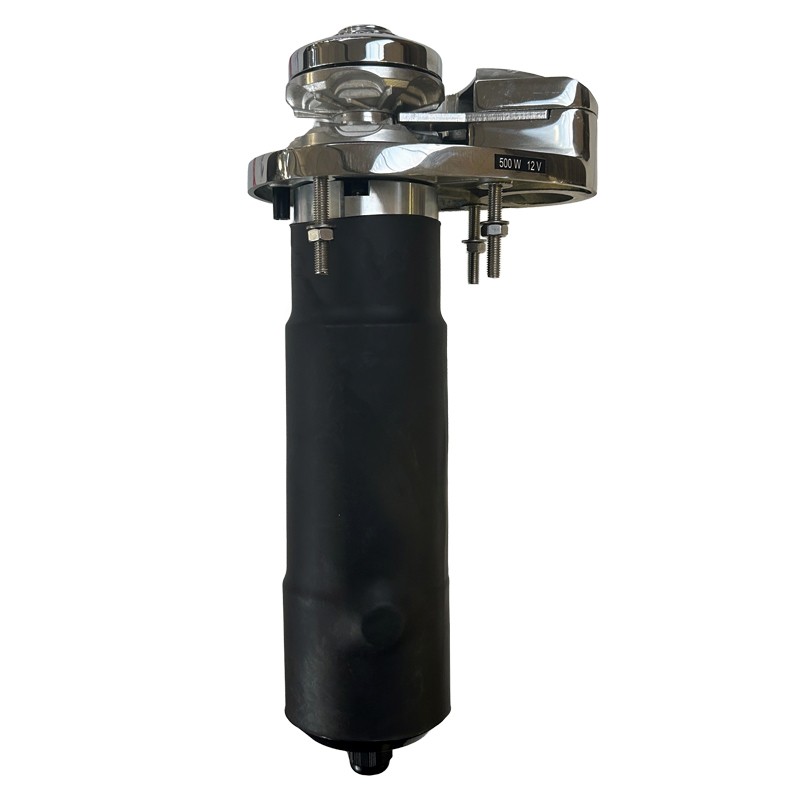

Lofrans XP800 Vertical Windlass 500W 12V – 6 mm & 8 mm Chain Gypsy
The Lofrans XP800 is a compact vertical electric anchor windlass designed for recreational boats up to 11 metres. Combining dependable performance with a compact footprint, it is suitable for both rope-and-chain anchor rodes and is available with gypsies for either 6 mm or 8 mm calibrated chain.
An integrated electric brake securely holds the anchor in position when the windlass is not operating, reducing load on the anchoring system and improving onboard safety. Each windlass is supplied complete with a control box and manual operating handle for installation and emergency manual operation.
Key Features
- Compact vertical electric anchor windlass.
- 500 W permanent magnet motor.
- 12 V DC operation.
- Integrated electric brake for secure anchor holding.
- Available for 6 mm or 8 mm calibrated chain.
- Compatible with rope and chain anchor rodes.
- Maximum pulling force of 320 kg.
- Recovery speed of 17–21 m/min.
- Supplied with control box and operating handle.
- Recommended for boats up to 11 metres.
Technical Specifications
Specification 6 mm Version 8 mm Version Manufacturer Lofrans Lofrans Model XP800 XP800 Product Type Vertical Electric Windlass Vertical Electric Windlass Motor Power 500 W 500 W Voltage 12 V DC 12 V DC Maximum Pull 320 kg 320 kg Recovery Speed 17–21 m/min 17–21 m/min Chain Compatibility 6 mm calibrated chain 8 mm calibrated chain Rope Compatibility 10–12 mm 12–14 mm Brake System Integrated electric brake Integrated electric brake Recommended Boat Length Up to 11 m Up to 11 m Included Control box and operating handle Control box and operating handle
Available Variants
Chain Size Compatible Rope Motor Voltage 6 mm 10–12 mm 500 W 12 V 8 mm 12–14 mm 500 W 12 V -
