ID
1380219
$ 1,271.21
1-2 weeks delivery time
-
+
The Lofrans X1 Vertical Windlass is a compact 500W 12V low-profile electric windlass designed for boats from 6 to 9 metres. Manufactured from marine-grade anodised aluminium alloy, it features a single gypsy for 6 mm calibrated chain and 12 mm anchor rope, incorporating a rope-retention system for smooth rope-to-chain transition. Delivering a maximum pulling force of 630 kg and recovery speeds of 23–26 m/min, the windlass is supplied complete with a control box and manual operating handle.
- Description
- Ask a Question
-

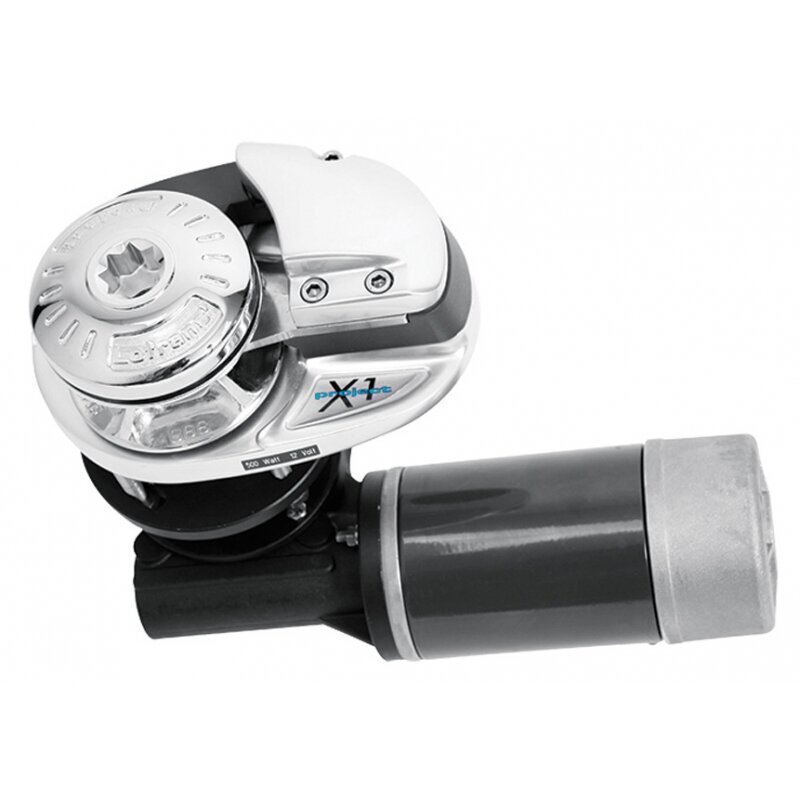

Lofrans X1 Vertical Windlass Aluminium 500W 12V – 6 mm Chain / 12 mm Rope Gypsy
The Lofrans X1 is a compact low-profile vertical electric windlass engineered for boats from 6 to 9 metres. Manufactured from a specially developed marine-grade anodised aluminium alloy, it provides excellent resistance to the marine environment while maintaining low weight and high durability.
The windlass features a single combination gypsy designed for 6 mm calibrated anchor chain and 12 mm anchor rope. An integrated rope-retention mechanism keeps the rope engaged with the gypsy, ensuring smooth transition between rope and chain during anchoring operations. The unit is supplied complete with a control box and manual operating handle.
Key Features
- Low-profile vertical electric windlass.
- Marine-grade anodised aluminium alloy construction.
- 500 W, 12 V DC motor.
- Combination gypsy for 6 mm chain and 12 mm rope.
- Integrated rope-retention system for smooth rope handling.
- Maximum pulling force of 630 kg.
- Recovery speed of 23–26 m/min.
- Supplied with control box and operating handle.
- Suitable for boats from 6 to 9 metres.
Technical Specifications
Specification Value Manufacturer Lofrans Model X1 Aluminium Lofrans Part No. 409557 SKU 0303210 Product Type Vertical Electric Anchor Windlass Motor Power 500 W Voltage 12 V DC Maximum Pull 630 kg Recovery Speed 23–26 m/min Chain Compatibility 6 mm calibrated chain Rope Compatibility 12 mm anchor rope Recommended Boat Length 6–9 m Material Marine-grade anodised aluminium alloy Weight 10 kg Included Control box and operating handle

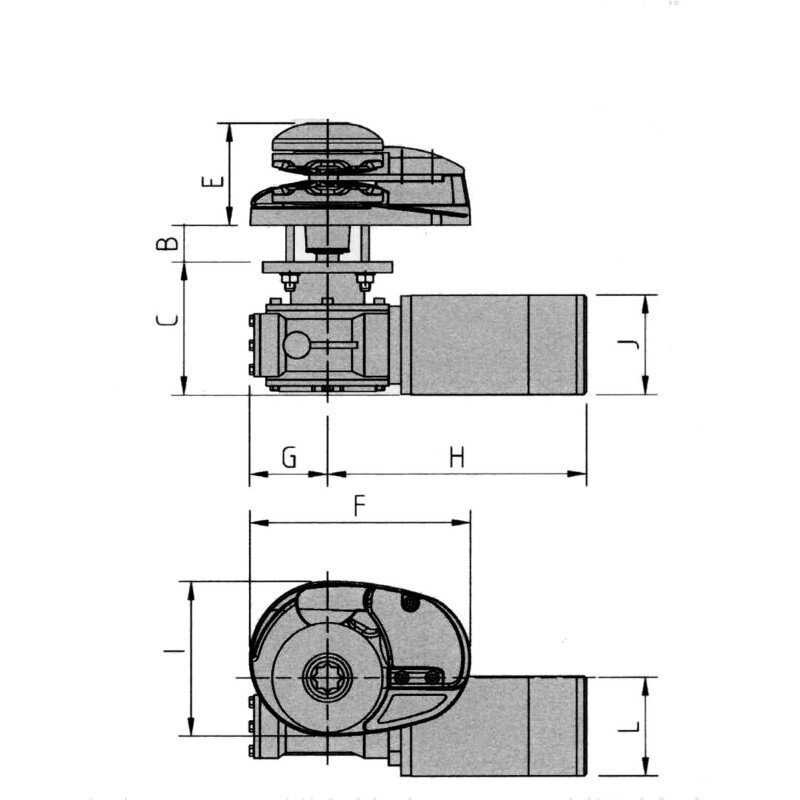

Dimensions
Dimension Value B 10 / 30 mm C 111 mm D 60 mm E 84 mm H 183 mm I 127 mm J 105 mm -
