ID
1380246
$ 2,090.32
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
Power, W
- 500
- 800
The Lofrans Razza Horizontal Windlass is a compact 12V electric anchor windlass designed for boats from 6 to 9 metres. Manufactured entirely from AISI 316L marine-grade stainless steel, it is available with 500W or 800W motors and gypsies for 6 mm or 8 mm chain. The combined rope/chain gypsy handles calibrated chain together with 10–12 mm or 12 mm rope, providing maximum pulling forces of 630 kg or 900 kg and recovery speeds up to 20 m/min.
- Description
- Ask a Question
-

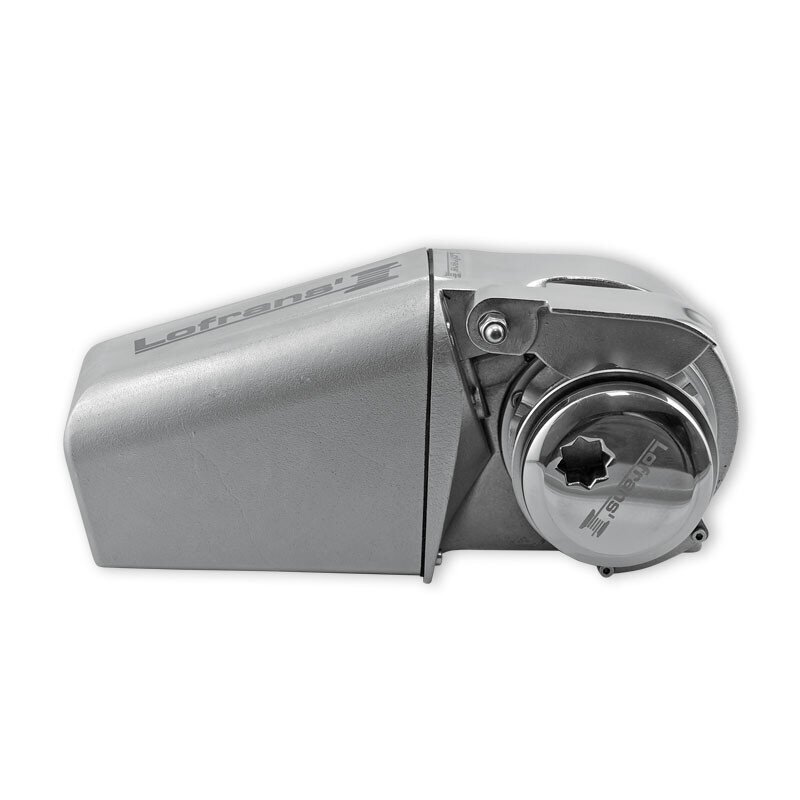

Lofrans Razza Horizontal Windlass 500W / 800W 12V – 6 mm & 8 mm Gypsy
The Lofrans Razza is a compact horizontal electric windlass engineered for boats from 6 to 9 metres. Constructed entirely from AISI 316L marine-grade stainless steel, it offers excellent corrosion resistance and long service life in demanding marine environments. The combined rope/chain gypsy is designed to handle calibrated chain together with anchor rope, providing smooth and reliable anchor deployment and retrieval.
The Razza range is available with 500W or 800W 12V motors and gypsies for either 6 mm or 8 mm chain, allowing the windlass to be matched to different anchoring systems while maintaining the same compact footprint.
Key Features
- Horizontal electric anchor windlass.
- Manufactured entirely from AISI 316L stainless steel.
- 12V DC motor.
- Available with 500W or 800W motor.
- Combined rope and chain gypsy.
- Compatible with 6 mm or 8 mm calibrated chain depending on version.
- Suitable for boats from 6 to 9 metres.
- Compact installation with identical mounting dimensions across the range.
Available Variants
Lofrans Part No. Motor Voltage Gypsy Rope Size Max Pull Recovery Speed 636738 500 W 12 V 6 mm chain 10–12 mm 630 kg 18 m/min 636739 500 W 12 V 8 mm chain 12 mm 630 kg 18 m/min 636740 800 W 12 V 6 mm chain 10–12 mm 900 kg 20 m/min 636699 800 W 12 V 8 mm chain 12 mm 900 kg 20 m/min
Dimensions
Dimension Value A 319 mm F 145 mm L 44 mm M 149 mm N 109 mm Weight 13.5 kg
Technical Specifications
Specification Details Product Type Horizontal Electric Anchor Windlass Series Lofrans Razza Material AISI 316L Marine Stainless Steel Motor Voltage 12 V DC Motor Options 500 W or 800 W Chain Compatibility 6 mm or 8 mm calibrated chain Rope Compatibility 10–12 mm or 12 mm rope Maximum Pull 630 kg or 900 kg depending on model Recovery Speed 18–20 m/min depending on model Recommended Boat Length 6–9 m -
