Lofrans Cayman 88 Horizontal Anchor Windlasses 1000W for Boats 11-14 m, Chain 8/10 mm

$ 2.545,54

1-2 weeks delivery time

Diameter, mm:

Voltage:

The Lofrans Cayman 88 Horizontal Windlass is designed for boats from 35 to 45 ft (11–14 m), offering 1000W of reliable anchoring power. Built with a marine-grade anodized aluminum body and equipped with a heavy-duty IP66 motor, it supports both 8 mm and 10 mm chains (DIN 766/ISO 4565) and is available in 12V and 24V versions. With a maximum linear load of 1375 kg, lifting capacity up to 690 kg, and line speed of 25–35 m/min, it ensures strong and efficient anchor handling. Includes independent gypsy and drum operation, manual chain release, and control box.

Description
Ask a Question

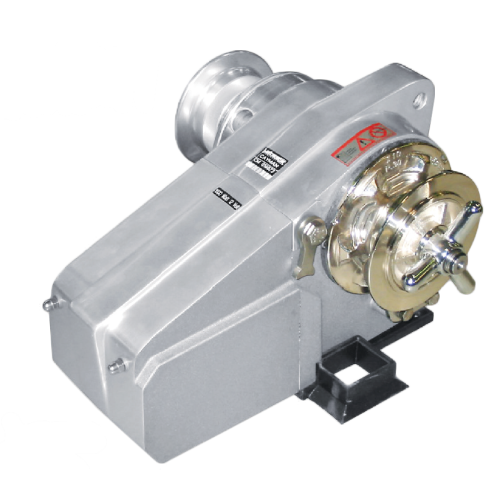

Lofrans Cayman 88 Horizontal Anchor Windlass – 1000W

The Lofrans Cayman 88 is a robust horizontal anchor windlass engineered for yachts and boats from 35 to 45 ft (11–14 m). Featuring a marine-grade anodized aluminum body and a heavy-duty IP66-rated motor, it delivers reliable performance in demanding marine conditions. Available in both 8 mm and 10 mm chain versions, with options for 12V or 24V power supply, the Cayman 88 ensures safe and efficient anchoring.

Main Features

Powerful Motor: 1000W electric motor, available in 12V or 24V.
Chain Compatibility: Supports 8 mm ISO 4565 / DIN 766 and 10 mm DIN 766 chains.
Durable Construction: Marine anodized aluminum body for corrosion resistance.
Heavy-Duty Performance: Max linear load up to 1375 kg, lift load up to 690 kg.
Efficient Operation: Independent gypsy and drum control, manual chain release, and override.
Safety & Convenience: Control box included; optional automatic free-fall system available.

Technical Specifications – Cayman 88 Models

Model	Chain Size	Voltage	Motor Power	Max Linear Load	Max Lift Load	Working Load	Line Speed	Weight
Cayman 88	8 mm ISO 4565 / DIN 766	12V	1000 W	1300 kg	650 kg	165 kg	25–35 m/min	25 kg
Cayman 88	8 mm ISO 4565 / DIN 766	24V	1000 W	1375 kg	690 kg	175 kg	25–35 m/min	25 kg
Cayman 88	10 mm DIN 766	12V	1000 W	1300 kg	650 kg	165 kg	25–35 m/min	25 kg
Cayman 88	10 mm DIN 766	24V	1000 W	1375 kg	690 kg	175 kg	25–35 m/min	25 kg

The Lofrans Cayman 88 Horizontal Windlass combines strength, efficiency, and durability, making it the perfect choice for yachts in the 35–45 ft range. With multiple chain and voltage options, it ensures versatility for different anchoring setups.
