The Lofrans X0 Vertical Windlass is a compact 500W 12V electric anchor windlass designed for boats up to 8 metres. Manufactured from marine-grade anodised aluminium alloy with a full polycarbonate protective cover, it offers excellent corrosion resistance while protecting the windlass base. Supplied complete with a control box and operating handle, the X0 is designed for 6 mm calibrated chain, delivering a maximum pulling force of 500 kg with a recovery speed of 12–16 m/min.
- Description
- Ask a Question
-

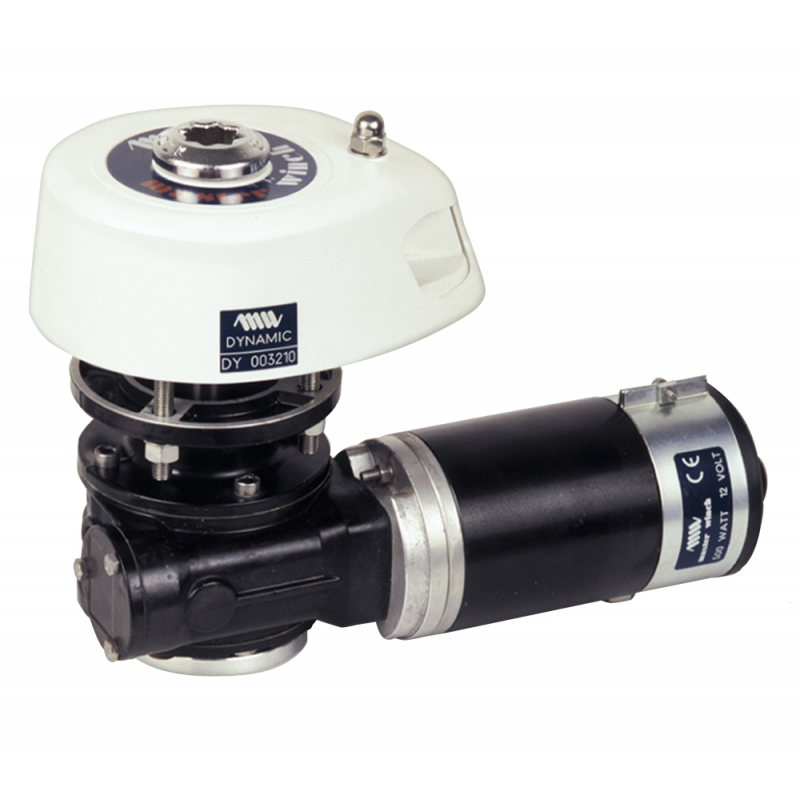

Lofrans X0 Vertical Windlass 500W 12V – 6 mm Gypsy
The Lofrans X0 is a compact vertical electric anchor windlass designed for small boats and tenders up to 8 metres in length. Built from a specially developed marine-grade anodised aluminium alloy, the windlass offers excellent corrosion resistance while maintaining low weight. A durable polycarbonate protective cover fully shields the base from exposure, making the unit particularly suitable for open-deck installations.
The windlass is supplied complete with a control box and manual operating handle. Designed for 6 mm calibrated anchor chain, it provides reliable anchoring performance with a maximum pulling force of 500 kg and recovery speeds of up to 16 m/min.
Key Features
- Compact vertical electric anchor windlass.
- Marine-grade anodised aluminium alloy construction.
- Polycarbonate protective base cover.
- 500 W, 12 V DC motor.
- Designed for 6 mm calibrated anchor chain.
- Maximum pulling force of 500 kg.
- Recovery speed of 12–16 m/min.
- Supplied with control box and manual handle.
- Recommended for boats up to 8 metres.
Technical Specifications
Specification Value Manufacturer Lofrans Model X0 Lofrans Part No. 411253 SKU 0303312 Product Type Vertical Electric Anchor Windlass Motor Power 500 W Voltage 12 V DC Maximum Pull 500 kg Recovery Speed 12–16 m/min Chain Compatibility 6 mm calibrated chain Recommended Boat Length Up to 8 m Material Marine-grade anodised aluminium alloy Protective Cover Polycarbonate Weight 7 kg Included Control box and operating handle

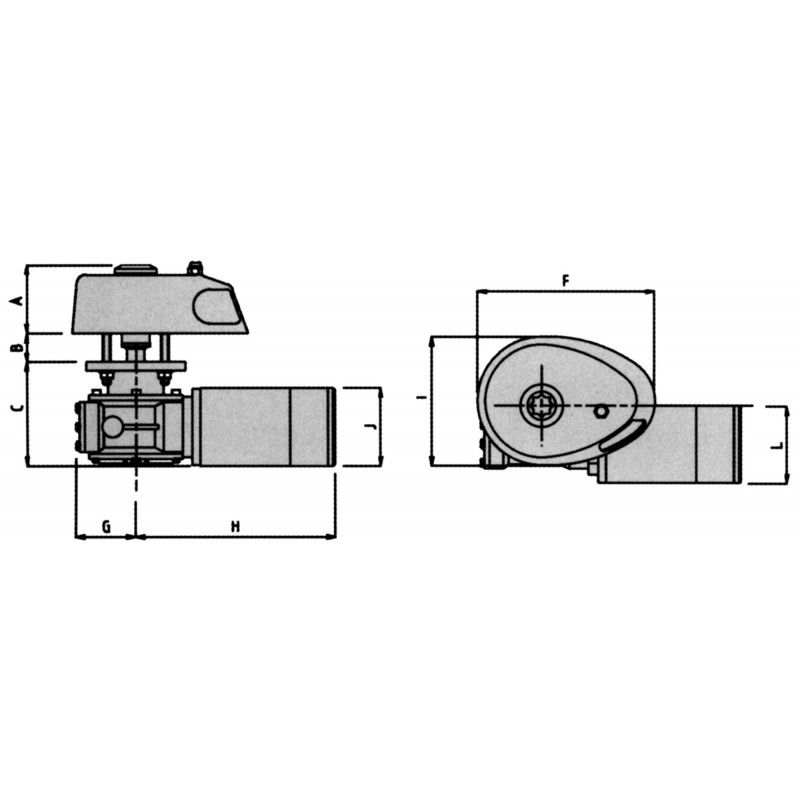

Dimensions
Dimension Value A 73 mm B 18 / 30 mm C 110 mm F 187 mm G 64 mm H 211 mm I 136 mm J 82 mm -
