ID
1344911
$ 680.57
1-2 weeks delivery time
-
+
The Exalto EWT wiper 232BD 12 V with a 50° wiping angle provides a balanced sweep range with strong 32 Nm torque, dual-speed operation, interval control, and self-parking function for continuous marine use.
- Description
- Ask a Question
-

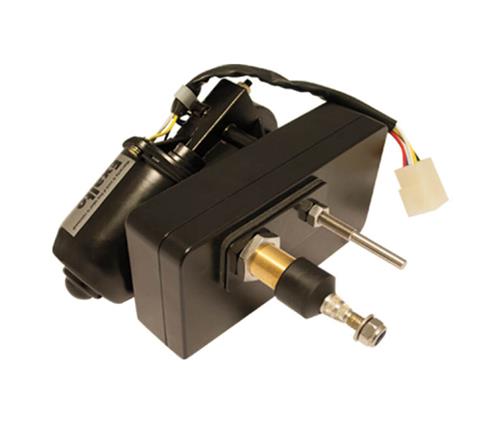

Exalto EWT Wiper 232BD 12V 50° 32Nm Bulkhead 75mm
The Exalto EWT Wiper 232BD 12V with a 50° wiping angle offers a balanced sweep range combined with strong torque performance. Designed for bulkhead mounting in MD1 series applications, this wiper motor delivers dual-speed operation, interval wiping, and a reliable self-parking function for continuous use in marine environments.
Product Details
- Sales unit: 1 Pieces
- Series: MD1
- Suitable for: MD1 series
- Arm type: MD1 PENDULUM
- Driven axles: 1
- Ungrounded: yes
- Self-parking: yes
- Speed interval: yes
Technical Data

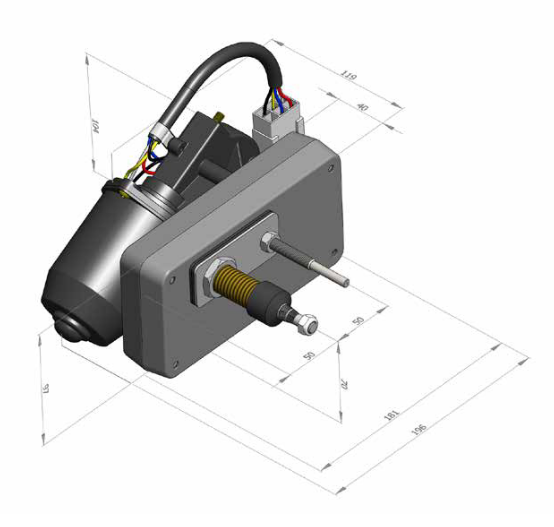

Voltage 12 V Type VDC Power 40 W Torque 32 Nm Wiping angle 50° High speed 56 rpm Low speed 38 rpm Maximum amperage 3 A Recommended fuse rating 6 A Drive shaft diameter 19 mm Support shaft diameter 6.4 mm Shaft length 130 mm Distance HoH 50 mm Maximum arm length 750 mm Maximum blade length 800 mm Product width 200 mm Product depth 254 mm Product height 106 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: 2157.40-50) (Barcode: 8720763536050)
-
