The Exalto EWT wiper 232BD 12 V with a 65° wiping angle offers extended sweep coverage and controlled performance, featuring 32 Nm torque, dual-speed operation, interval control, and self-parking function for demanding installations.
- Description
- Ask a Question
-

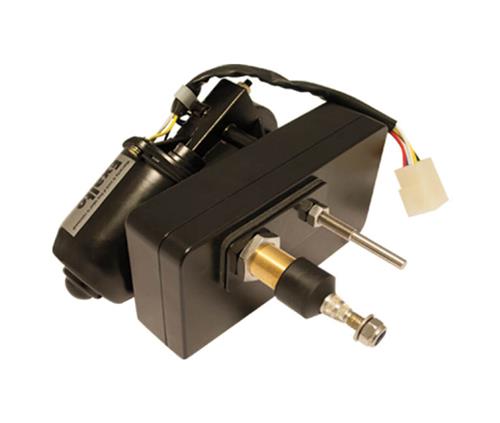

Exalto EWT Wiper 232BD 12V 65° 32Nm Bulkhead 75mm
The Exalto EWT Wiper 232BD 12V with a 65° wiping angle provides extended sweep coverage while maintaining controlled performance. This MD1 series bulkhead-mounted wiper motor offers 32 Nm torque, dual-speed operation with interval control, and a self-parking function, making it suitable for demanding marine and industrial installations.
Product Details
- Sales unit: 1 Pieces
- Series: MD1
- Suitable for: MD1 series
- Arm type: PENDULUM MD1
- Driven axles: 1
- Ungrounded: yes
- Self-parking: yes
- Speed interval: yes
Technical Data

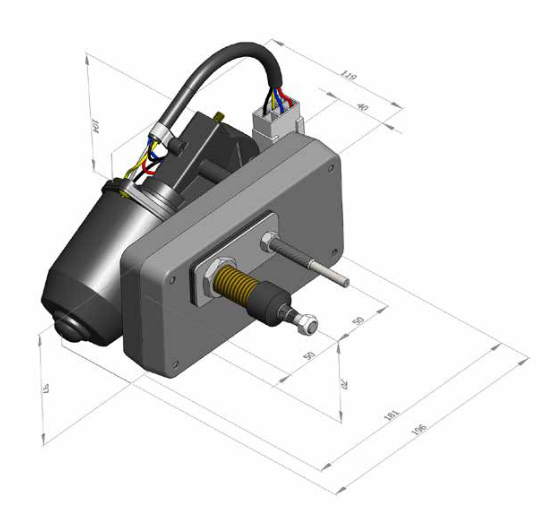

Voltage 12 V Type VDC Power 40 W Torque 32 Nm Wiping angle 65° High speed 56 rpm Low speed 38 rpm Maximum amperage 3 A Recommended fuse rating 6 A Drive shaft diameter 19 mm Support shaft diameter 6.4 mm Shaft length 130 mm Distance HoH 50 mm Maximum arm length 750 mm Maximum blade length 800 mm Product width 200 mm Product depth 254 mm Product height 106 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: 2157.40-65) (Barcode: 8720763536081)
-
