ID
1344916
$ 680.57
1-2 weeks delivery time
-
+
The Exalto EWT wiper 232BD 12 V with a 75° wiping angle is a high-performance MD1 pendulum wiper motor combining strong 32 Nm torque, dual-speed operation, interval wiping, and self-parking for harsh marine environments.
- Description
- Ask a Question
-

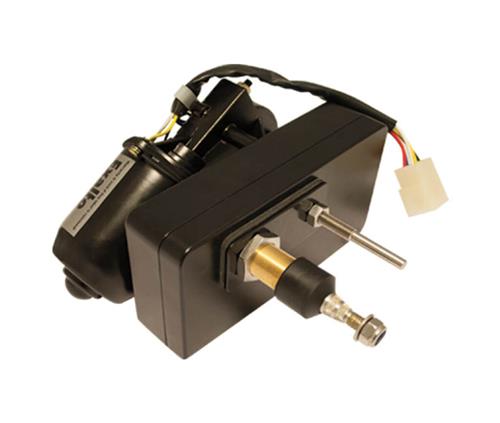

Exalto EWT Wiper 232BD 12V 75° 32Nm Bulkhead 75mm
The Exalto EWT Wiper 232BD with a 75° wiping angle is a high-performance 12 VDC bulkhead-mounted wiper motor from the MD1 series. It combines a strong 32 Nm torque with dual-speed operation, interval wiping, and a self-parking function for dependable performance in demanding marine environments.
Product Details
- Sales unit: 1 Pieces
- Series: MD1
- Suitable for: MD1 series
- Arm type: MD1 PENDULUM
- Driven axles: 1
- Ungrounded: yes
- Self-parking: yes
- Speed interval: yes
Technical Data

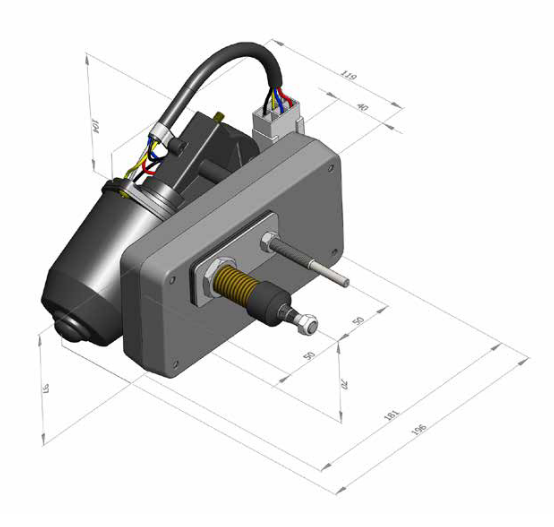

Voltage 12 V Type VDC Power 40 W Torque 32 Nm Wiping angle 75° High speed 56 rpm Low speed 38 rpm Maximum amperage 3 A Recommended fuse rating 6 A Drive shaft diameter 19 mm Support shaft diameter 6.4 mm Shaft length 130 mm Distance HoH 50 mm Maximum arm length 750 mm Maximum blade length 800 mm Product width 200 mm Product depth 254 mm Product height 106 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: 2157.40-75) (Barcode: 8720763536104)
-
