ID
1344917
$ 680.57
1-2 weeks delivery time
-
+
The Exalto EWT wiper 232BD 12 V with an 80° wiping angle delivers wide sweep coverage and consistent performance, featuring 32 Nm torque, dual-speed operation, interval control, and self-parking functionality for marine and industrial use.
- Description
- Ask a Question
-

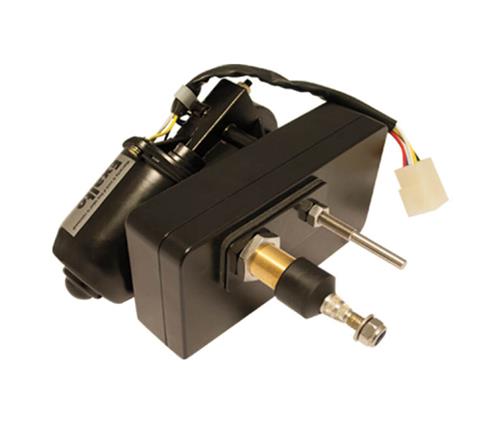

Exalto EWT Wiper 232BD 12V 80° 32Nm Bulkhead 75mm
The Exalto EWT Wiper 232BD 12V with an 80° wiping angle offers wide sweep coverage combined with reliable torque output. Designed for MD1 series bulkhead mounting, this wiper motor features dual-speed operation with interval control and a self-parking function, ensuring consistent performance in marine and industrial applications.
Product Details
- Sales unit: 1 Pieces
- Series: MD1
- Suitable for: MD1 series
- Arm type: MD1 PENDULUM
- Driven axles: 1
- Ungrounded: yes
- Self-parking: yes
- Speed interval: yes
Technical Data

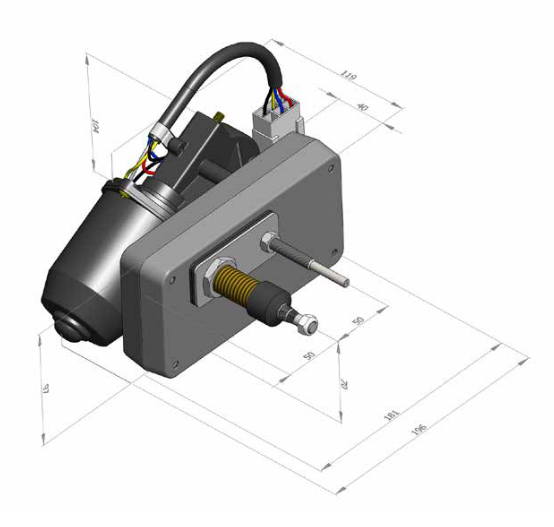

Voltage 12 V Type VDC Power 40 W Torque 32 Nm Wiping angle 80° High speed 56 rpm Low speed 38 rpm Maximum amperage 3 A Recommended fuse rating 6 A Drive shaft diameter 19 mm Support shaft diameter 6.4 mm Shaft length 130 mm Distance HoH 50 mm Maximum arm length 750 mm Maximum blade length 800 mm Product width 200 mm Product depth 254 mm Product height 106 mm Wall Thickness 75 mm
Brand: Exalto Wiper Technologies B.V. (Article code: 2157.40-80) (Barcode: 8720763536111)
-
