ID
1345304
$ 448.56
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V bulkhead wiper motor provides an 85° wipe angle and 25Nm torque with a single driven axle. It includes speed interval control, self-parking, and supports pendulum arms, designed for 20mm wall mounting in marine applications.
- Description
- Ask a Question
-

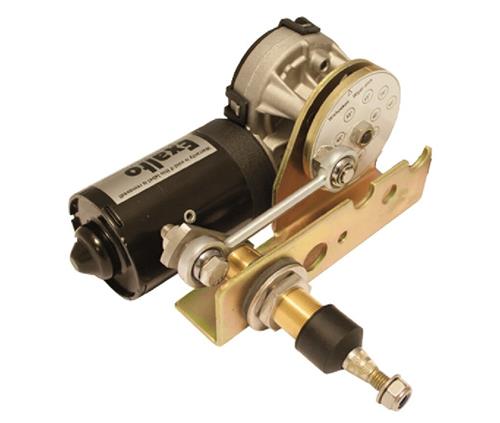

Exalto EWT Wiper 223BDS 24V 85° 25Nm Bulkhead 20mm Single
The Exalto EWT Wiper 223BDS is a 24 VDC bulkhead wiper motor for MD1 series applications, designed to deliver strong wiping power with smooth control. This single driven-axle unit provides 25 Nm torque, interval operation, and self-parking, plus an 85° angle of view for broader wipe coverage on marine glazing.
Key Features
- Bulkhead-mounted design for wall thickness: 20 mm
- Wipe angle (angle of view): 85°
- Torque: 25 Nm with 1 driven axle
- Speed interval: yes
- Self-parking: yes
- Ungrounded: yes
- MD1 series compatibility
- Maximum arm length 750 mm; maximum blade length 750 mm
Technical Data
Article XA2166.30S-85 Sales Unit 1 piece Series MD1 Suitable For MD1 series Type (VAC / VDC) VDC Voltage (V) 24 Power (W) 36 Angle Of View (°) 85° Torque (Nm) 25 Driven Axles 1 Speed Interval yes Self-Parking yes Ungrounded yes Drive Shaft Diameter (mm) 19 Shaft Length (mm) 77 Wall Thickness (mm) 20 Arm Type MD1 / PENDULUM Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Ampèrage (A) 1.5 Recommended Fuse Rating (A) 4 Product Width (mm) 170 Product Depth (mm) 186 Product Height (mm) 90 Ean Code 8720763540170
Brand: Exalto Wiper Technologies B.V. Article code: XA2166.30S-85 Barcode: 8720763540170
-
