The Exalto EWT 223BDS 24V bulkhead wiper motor offers a 75° wipe angle with 25Nm torque and a single driven axle. It supports interval speed control, self-parking, and pendulum arm setups, mounting on 20mm walls for consistent marine windshield wiping.
- Description
- Ask a Question
-

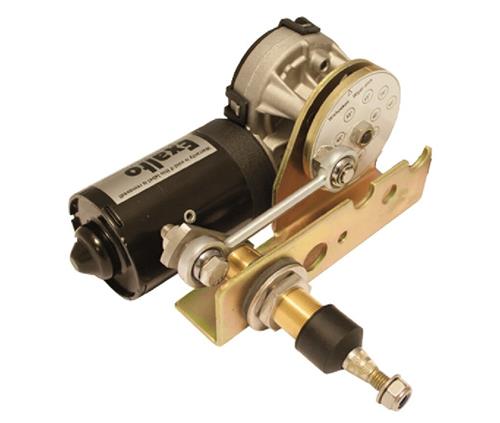

Exalto EWT Wiper 223BDS 24V 75° 25Nm Bulkhead 20mm Single
The Exalto EWT Wiper 223BDS is a 24 VDC bulkhead-mounted wiper motor for the MD1 series, built for dependable marine windshield clearing. This single-drive unit delivers 25 Nm torque, includes speed interval control and self-parking, and supports a pendulum arm setup for consistent wipe performance.
Key Features
- Bulkhead installation for wall thickness: 20 mm
- Wipe angle (angle of view): 75°
- Torque: 25 Nm with 1 driven axle
- Speed interval: yes
- Self-parking: yes
- Ungrounded: yes
- Suitable for MD1 series
- Supports maximum arm length 750 mm and maximum blade length 750 mm
Technical Data
Article XA2166.30S-75 Sales Unit 1 piece Series MD1 Suitable For MD1 series Type (VAC / VDC) VDC Voltage (V) 24 Power (W) 36 Angle Of View (°) 75° Torque (Nm) 25 Driven Axles 1 Speed Interval yes Self-Parking yes Ungrounded yes Drive Shaft Diameter (mm) 19 Shaft Length (mm) 77 Wall Thickness (mm) 20 Arm Type MD1 / PENDULUM Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Ampèrage (A) 1.5 Recommended Fuse Rating (A) 4 Product Width (mm) 170 Product Depth (mm) 186 Product Height (mm) 90 Ean Code 8720763540156
Brand: Exalto Wiper Technologies B.V. Article code: XA2166.30S-75 Barcode: 8720763540156
-
