ID
1345307
$ 455.44
1-2 weeks delivery time
-
+
The Exalto EWT Wiper 223BD 24V 45° is a 24 VDC MD1 series bulkhead wiper motor designed for consistent marine wiping. It provides 25 Nm torque, interval control, and self-parking, supporting a pendulum arm configuration and a 35 mm wall thickness installation.
- Description
- Ask a Question
-

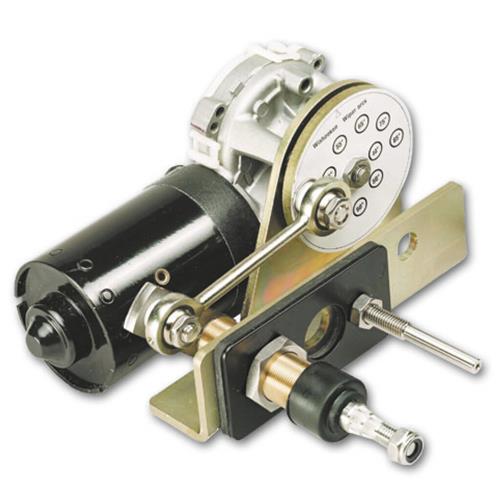

Exalto EWT Wiper 223BD 24V 45° 25Nm Bulkhead 35mm
The Exalto EWT Wiper 223BD is a 24 VDC bulkhead marine wiper motor in the MD1 series, built for reliable wiping in tough conditions. It delivers 25 Nm torque with interval control and self-parking, and it is designed for bulkhead installations with a 35 mm wall thickness.
Key Features
- 24 VDC MD1 series bulkhead wiper motor
- Angle of view: 45°
- 25 Nm torque with 1 driven axle
- Speed interval: yes
- Self-parking: yes
- Ungrounded: yes
- Arm type: PENDULUM / MD1
- Supports maximum arm length 750 mm and maximum blade length 750 mm
Technical Data
Article XA2166.32-45 Sales Unit 1 piece Series MD1 Suitable For MD1 series Type (VAC / VDC) VDC Voltage (V) 24 Power (W) 36 Angle Of View (°) 45° Torque (Nm) 25 Driven Axles 1 Speed Interval yes Self-Parking yes Ungrounded yes Drive Shaft Diameter (mm) 19 Shaft Length (mm) 92 Distance HoH (mm) 50 Support Diameter (mm) 6.4 Arm Type PENDULUM / MD1 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Ampèrage (A) 1.5 Recommended Fuse Rating (A) 4 Product Width (mm) 170 Product Depth (mm) 198 Product Height (mm) 90 Wall Thickness (mm) 35 Ean Code 8720763540316
Brand: Exalto Wiper Technologies B.V. Article code: XA2166.32-45 Barcode: 8720763540316
-
