ID
1345303
$ 448.56
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V MD1 series wiper motor delivers 25Nm torque with an 80° wipe angle. It features interval wiping, self-parking, and a pendulum arm design, mounting on a 20mm bulkhead to ensure steady performance and improved marine visibility.
- Description
- Ask a Question
-

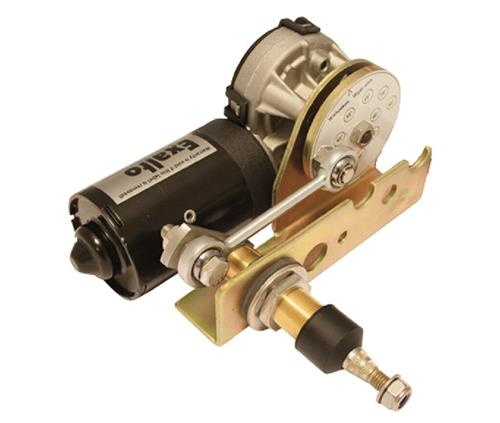

Exalto EWT Wiper 223BDS 24V 80° 25Nm Bulkhead 20mm Single
The Exalto EWT Wiper 223BDS is a robust 24 VDC MD1 series bulkhead wiper motor engineered for reliable, single-axle wiping on marine windows. With 25 Nm torque, interval wiping, and a self-parking function, it delivers steady performance and a wider 80° wipe angle for improved visibility.
Key Features
- Bulkhead mounting for wall thickness: 20 mm
- Wipe angle (angle of view): 80°
- Torque: 25 Nm with 1 driven axle
- Speed interval: yes
- Self-parking: yes
- Ungrounded: yes
- Suitable for MD1 series
- Supports maximum arm length 750 mm and maximum blade length 750 mm
Technical Data
Article XA2166.30S-80 Sales Unit 1 piece Series MD1 Suitable For MD1 series Type (VAC / VDC) VDC Voltage (V) 24 Power (W) 36 Angle Of View (°) 80° Torque (Nm) 25 Driven Axles 1 Speed Interval yes Self-Parking yes Ungrounded yes Drive Shaft Diameter (mm) 19 Shaft Length (mm) 77 Wall Thickness (mm) 20 Arm Type PENDULUM / MD1 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Ampèrage (A) 1.5 Recommended Fuse Rating (A) 4 Product Width (mm) 170 Product Depth (mm) 186 Product Height (mm) 90 Ean Code 8720763540163
Brand: Exalto Wiper Technologies B.V. Article code: XA2166.30S-80 Barcode: 8720763540163
-
