The Exalto EWT 223BDS 24V wiper motor offers a 70° wiping angle, combining pendulum operation with self-parking and speed interval. Designed for MD1 series bulkhead mounting, it delivers 25Nm torque and supports arms and blades up to 750mm.
- Description
- Ask a Question
-

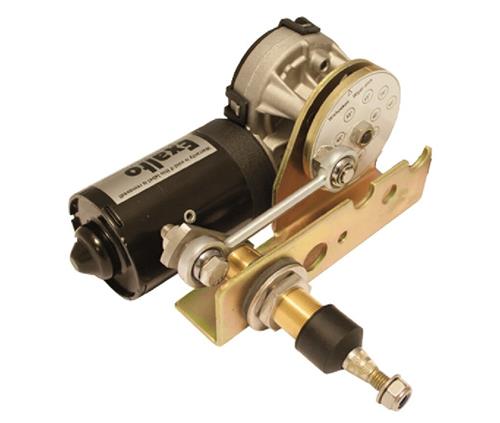

Exalto EWT Wiper 223BDS 24V 70° 25Nm Bulkhead 35mm Single
This Exalto EWT 223BDS 24V wiper motor provides a wider 70° wiping angle for enhanced visibility. Built for bulkhead installation, it combines a pendulum wiping motion with self-parking and speed interval functionality. The MD1 series design supports arms and blades up to 750 mm and delivers a consistent 25 Nm torque.
Key Features
- 70° pendulum wiping angle
- Self-parking resting position
- Speed interval function
- Single driven axle
- Suitable for MD1 series
Technical Data
Article Code XA2166.32S-70 Sales Unit 1 piece EAN Code 8720763540583 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Driven Axles 1 Angle Of View 70° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating yes Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 201 mm Product Height 90 mm Wall Thickness 35 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.32S-70)
-
