ID
1345328
$ 443.14
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V wiper motor with a full 90° angle of view provides maximum wiping range within the MD1 series. It features pendulum operation, self-parking, speed interval, and 25Nm torque, supporting long arms and blades up to 750mm on a 35mm bulkhead.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BDS 24V 90° 25Nm Bulkhead 35mm Single

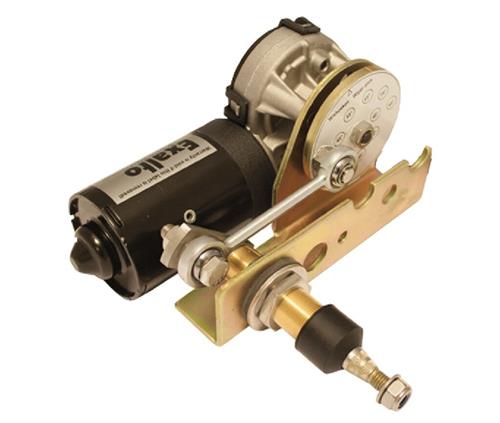

The Exalto EWT 223BDS 24V wiper motor with a full 90° angle of view provides maximum wiping range within the MD1 series. This bulkhead-mounted, single-drive wiper features pendulum operation, self-parking, and speed interval. With a torque output of 25 Nm and support for long arms and blades up to 750 mm, it is ideal for demanding professional installations.
Key Features
- Maximum 90° angle of view
- Pendulum wiping system
- Self-parking function
- Speed interval available
- Bulkhead mounting design
Technical Data
Article Code XA2166.32S-90 Sales Unit 1 piece EAN Code 8720763540620 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Driven Axles 1 Angle Of View 90° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating yes Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 201 mm Product Height 90 mm Wall Thickness 35 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.32S-90)
-
