ID
1345322
$ 443.14
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V wiper motor with a 60° angle of view provides wide wiping coverage in a compact bulkhead-mounted MD1 series design. It features pendulum operation, self-parking, speed interval, and 25Nm torque, supporting arms and blades up to 750mm.
- Description
- Ask a Question
-

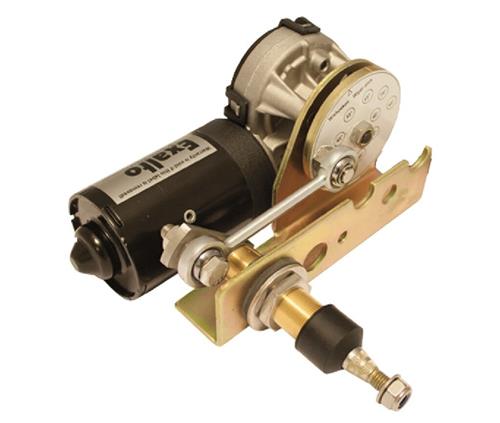

Exalto EWT Wiper 223BDS 24V 60° 25Nm Bulkhead 35mm Single
The Exalto EWT 223BDS 24V wiper motor with a 60° angle of view provides wide wiping coverage in a compact bulkhead-mounted design. This MD1 series motor features pendulum operation, self-parking, and speed interval. It delivers 25 Nm torque and supports long wiper arms and blades up to 750 mm, making it suitable for professional applications.
Key Features
- Wide 60° pendulum wiping angle
- Self-parking function
- Speed interval available
- Bulkhead installation
- Single driven axle
Technical Data
Article Code XA2166.32S-60 Sales Unit 1 piece EAN Code 8720763540569 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Driven Axles 1 Angle Of View 60° Voltage 24 VDC Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating yes Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 201 mm Product Height 90 mm Wall Thickness 35 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.32S-60)
-
