ID
1345327
$ 443.14
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V wiper motor with an 85° angle of view offers extended coverage, combining pendulum wiping, self-parking, and speed interval. It delivers 25Nm torque, supports long arms and blades up to 750mm, and is compatible with MD1 series bulkhead mounting.
- Description
- Ask a Question
-

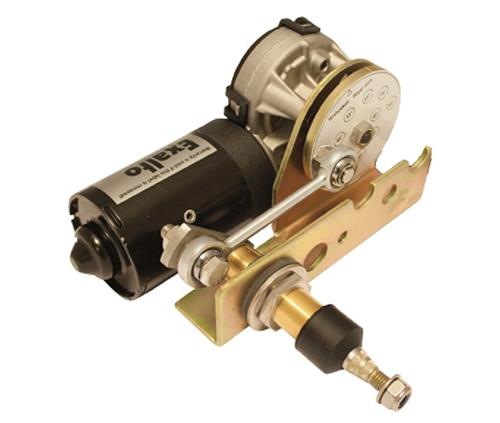

Exalto EWT Wiper 223BDS 24V 85° 25Nm Bulkhead 35mm Single
This Exalto EWT 223BDS 24V wiper motor offers an extended 85° angle of view for maximum wiping coverage. Designed for bulkhead installation, it features a pendulum wiping movement, self-parking, and speed interval. As part of the MD1 series, it supports arms and blades up to 750 mm and delivers a steady 25 Nm torque.
Key Features
- 85° pendulum wiping angle
- Self-parking resting position
- Speed interval function
- Single driven axle
- MD1 series compatibility
Technical Data
Article Code XA2166.32S-85 Sales Unit 1 piece EAN Code 8720763540613 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Driven Axles 1 Angle Of View 85° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating yes Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 92 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 201 mm Product Height 90 mm Wall Thickness 35 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.32S-85)
-
