Exalto EWT Wiper 223BDS 24V single-shaft bulkhead wiper offering a 50° sweep and 25 Nm torque, for 20 mm wall thickness. Supports MD1 arms and includes self-parking, speed interval, 19 mm shaft diameter, and 36 W power.
- Description
- Ask a Question
-

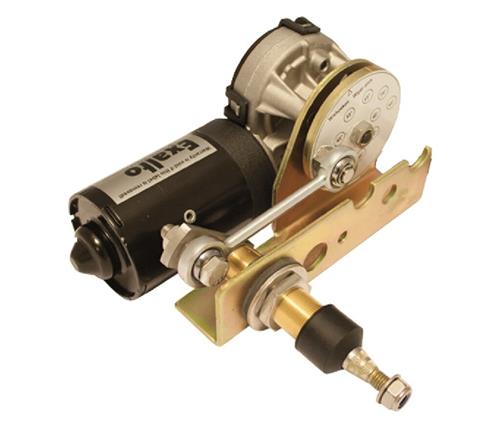

Exalto EWT Wiper 223BDS 24V 50° 25Nm Bulkhead 20mm Single
The Exalto EWT 223BDS 24V wiper with a 50° wiping angle is a durable single-shaft pendulum motor designed for bulkhead mounting with 20mm thickness. It provides 25Nm torque and is compatible with MD1 series arms. This model includes self-parking and speed interval features for effective wiping performance.
Key Features
- Voltage: 24V DC
- Torque: 25Nm
- Angle of View: 50°
- Single shaft pendulum system
- Self-parking and speed interval enabled
- Drive shaft diameter: 19 mm
- Bulkhead mounting with 20 mm thickness
- Suitable for MD1 series arms
- Power consumption: 36 W
- Maximum blade and arm length: 750 mm
Technical Specifications
Article Code XA2166.30S-50 Sales Unit 1 piece Drive Shaft Diameter (mm) 19 Arm Type MD1 Pendulum Shaft Length (mm) 77 EAN Code 8720763540101 Recommended Fuse Rating (A) 4 Ungrounded Yes Suitable For MD1 Series Driven Axles 1 Maximum Ampèrage (A) 1.5 Product Width (mm) 170 Product Depth (mm) 186 Product Height (mm) 90 Series MD1 Voltage Type VDC High Speed (rpm) 60 Low Speed (rpm) 40 Power (W) 36 Wall Thickness (mm) 20
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.30S-50)
-
