ID
1345314
$ 455.44
1-2 weeks delivery time
-
+
The Exalto EWT Wiper 223BD 24V 80° is a 24 VDC MD1 series bulkhead wiper motor with 25 Nm torque, interval wiping, and self-parking. It supports pendulum arm setups for 35 mm wall thickness and long arm and blade lengths up to 750 mm.
- Description
- Ask a Question
-

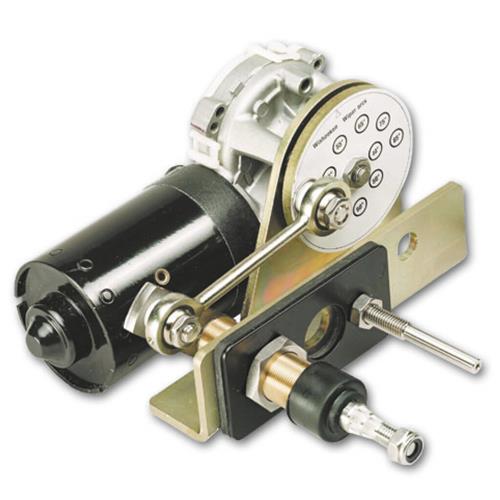

Exalto EWT Wiper 223BD 24V 80° 25Nm Bulkhead 35mm
The Exalto EWT Wiper 223BD is a 24 VDC bulkhead-mounted wiper motor for the MD1 series, designed to deliver consistent wiping power in marine conditions. This single driven-axle motor produces 25 Nm torque and includes interval wiping and self-parking for convenient control. It is built for 35 mm wall thickness installations and supports an MD1 pendulum arm configuration with up to 750 mm arm and blade length.
Key Features
- MD1 series bulkhead wiper motor (24 VDC)
- Angle of view: 80°
- Torque: 25 Nm; driven axles: 1
- Speed interval: yes
- Self-parking: yes
- Ungrounded: yes
- Arm type: MD1 / PENDULUM
- Wall thickness (mm): 35
Technical Data
Article XA2166.32-80 Sales Unit 1 piece Series MD1 Suitable For MD1 series Type (VAC / VDC) VDC Voltage (V) 24 Power (W) 36 Angle Of View (°) 80° Torque (Nm) 25 Driven Axles 1 Speed Interval yes Self-Parking yes Ungrounded yes Drive Shaft Diameter (mm) 19 Shaft Length (mm) 92 Distance HoH (mm) 50 Support Diameter (mm) 6.4 Arm Type MD1 / PENDULUM Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Ampèrage (A) 1.5 Recommended Fuse Rating (A) 4 Product Width (mm) 170 Product Depth (mm) 198 Product Height (mm) 90 Wall Thickness (mm) 35 Ean Code 8720763540385
Brand: Exalto Wiper Technologies B.V. Article code: XA2166.32-80 Barcode: 8720763540385
-
