ID
1345313
$ 455.44
1-2 weeks delivery time
-
+
The Exalto EWT Wiper 223BD 24V 75° is a bulkhead-mounted MD1 series wiper motor providing 25 Nm torque with interval wiping and self-parking. It fits 35 mm wall thickness and accommodates pendulum arm configurations up to 750 mm in length.
- Description
- Ask a Question
-

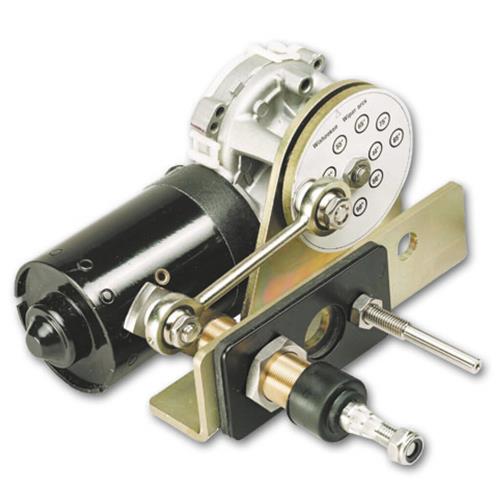

Exalto EWT Wiper 223BD 24V 75° 25Nm Bulkhead 35mm
The Exalto EWT Wiper 223BD is a 24 VDC MD1 series bulkhead wiper motor engineered for reliable, controlled wiping on marine windows. With 25 Nm torque, interval wiping, and a self-parking function, this single-axle drive motor is suitable for a 35 mm wall thickness installation and supports an MD1 pendulum arm configuration up to 750 mm arm and blade length.
Key Features
- 24 VDC bulkhead wiper motor for MD1 series
- Angle of view: 75°
- Torque: 25 Nm; driven axles: 1
- Speed interval: yes
- Self-parking: yes
- Ungrounded: yes
- Arm type: MD1 / PENDULUM
- Wall thickness (mm): 35
Technical Data
Article XA2166.32-75 Sales Unit 1 piece Series MD1 Suitable For MD1 series Type (VAC / VDC) VDC Voltage (V) 24 Power (W) 36 Angle Of View (°) 75° Torque (Nm) 25 Driven Axles 1 Speed Interval yes Self-Parking yes Ungrounded yes Drive Shaft Diameter (mm) 19 Shaft Length (mm) 92 Distance HoH (mm) 50 Support Diameter (mm) 6.4 Arm Type MD1 / PENDULUM Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Ampèrage (A) 1.5 Recommended Fuse Rating (A) 4 Product Width (mm) 170 Product Depth (mm) 198 Product Height (mm) 90 Wall Thickness (mm) 35 Ean Code 8720763540378
Brand: Exalto Wiper Technologies B.V. Article code: XA2166.32-75 Barcode: 8720763540378
-
