ID
1345317
$ 443.14
1-2 weeks delivery time
-
+

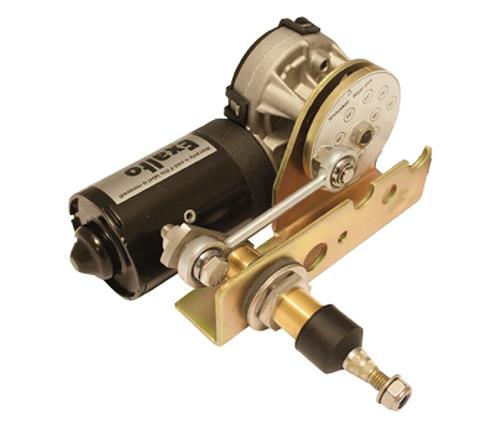

The Exalto EWT Wiper 223BDS is a 24V DC single-drive wiper unit for the MD1 series, featuring a pendulum MD1 arm, two-speed operation, speed interval, and self-parking. It is designed for bulkhead mounting with a 35mm wall thickness and 92mm shaft length, delivering 25Nm torque and supporting long arms and blades up to 750mm.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BDS 24V ..° 25Nm Bulkhead 35mm Single
Product Overview
The Exalto EWT Wiper 223BDS is a 24V DC single-drive wiper unit for the MD1 series. It features a pendulum arm type (MD1), two-speed operation (low/high), a speed interval function, and self-parking for a neat end position after use. Designed for bulkhead mounting with a 35mm wall thickness and a 92mm shaft length.
Key Features
- Voltage: 24V (VDC)
- Torque: 25Nm
- Two speeds: 40 rpm (low) / 60 rpm (high)
- Speed interval: Yes
- Self-parking: Yes
- Pendulum arm type: MD1
- Single driven axle
- Ungrounded: Yes
Technical Data
Sales unit 1 piece Series MD1 Suitable for MD1 series Arm type MD1 (PENDULUM) Angle of view (°) ..° Driven axles 1 Torque (Nm) 25 Power (W) 36 Voltage (V) 24 Supply type (VAC / VDC) VDC Low speed (rpm) 40 High speed (rpm) 60 Maximum amperage (A) 1.5 Recommended fuse rating (A) Yes Speed interval Yes Self-parking Yes Ungrounded Yes Dimensions & Installation
- Drive shaft diameter (mm): 19
- Shaft length (mm): 92
- Wall thickness (mm): 35
- Product width (mm): 170
- Product depth (mm): 201
- Product height (mm): 90
- Maximum arm length (mm): 750
- Maximum blade length (mm): 750
Brand: Exalto Wiper Technologies B.V. Article code: XA2166.32S Barcode: 8720193091327
-
