The Exalto EWT Wiper 223BD 24V 70° is a 24 VDC MD1 series bulkhead wiper motor delivering 25 Nm torque with interval control and self-parking. It supports a single driven axle with pendulum arm setup for installations with 35 mm wall thickness.
- Description
- Ask a Question
-

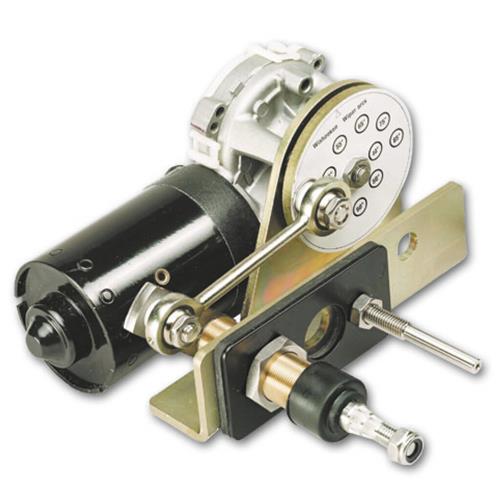

Exalto EWT Wiper 223BD 24V 70° 25Nm Bulkhead 35mm
The Exalto EWT Wiper 223BD is a 24 VDC bulkhead-mounted wiper motor from the MD1 series, built for dependable marine visibility. This single driven-axle motor delivers 25 Nm torque and features interval wiping plus self-parking for smooth, controlled operation. Designed for a 35 mm wall thickness, it supports an MD1 pendulum arm configuration with arm and blade lengths up to 750 mm.
Key Features
- MD1 series bulkhead wiper motor (24 VDC)
- Angle of view: 70°
- Torque: 25 Nm; driven axles: 1
- Speed interval: yes
- Self-parking: yes
- Ungrounded: yes
- Arm type: PENDULUM / MD1
- Wall thickness (mm): 35
Technical Data
Article XA2166.32-70 Sales Unit 1 piece Series MD1 Suitable For MD1 series Type (VAC / VDC) VDC Voltage (V) 24 Power (W) 36 Angle Of View (°) 70° Torque (Nm) 25 Driven Axles 1 Speed Interval yes Self-Parking yes Ungrounded yes Drive Shaft Diameter (mm) 19 Shaft Length (mm) 92 Distance HoH (mm) 50 Support Diameter (mm) 6.4 Arm Type PENDULUM / MD1 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Ampèrage (A) 1.5 Recommended Fuse Rating (A) 4 Product Width (mm) 170 Product Depth (mm) 198 Product Height (mm) 90 Wall Thickness (mm) 35 Ean Code 8720763540361
Brand: Exalto Wiper Technologies B.V. Article code: XA2166.32-70 Barcode: 8720763540361
-
