ID
1345207
$ 434.81
1-2 weeks delivery time
-
+
Exalto EWT 223BD 12V 45° bulkhead-mounted wiper motor for MD1 series applications, featuring a pendulum arm, interval wipe, and self-parking. With 23 Nm torque and a balanced wiping angle, it provides consistent performance in compact installations.
- Description
- Ask a Question
-

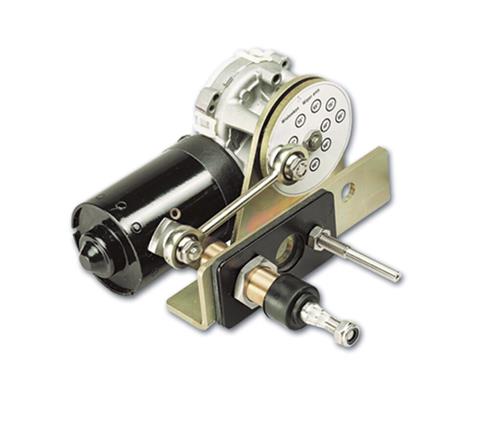

Exalto EWT Wiper 223BD 12V 45° 23Nm Bulkhead 20mm
This Exalto EWT 223BD wiper motor operates on 12V DC and is designed for bulkhead installation within the MD1 series. It features a pendulum arm type, interval wiping, and a self-parking function. The 45° wiping angle provides balanced coverage while maintaining consistent torque output.
Key Features
- Bulkhead-mounted construction
- Pendulum arm type
- Speed interval function
- Self-parking system
- Ungrounded 12V DC design
Technical Data
Article Code XA2165.30-45 Sales Unit 1 piece EAN Code 8720763538702 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 45° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 76 mm Distance HoH 50 mm Wall Thickness 20 mm Support Diameter 6.4 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 180 mm Product Depth 189.5 mm Product Height 108 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30-45 | Barcode: 8720763538702
-
