ID
1345206
$ 434.81
1-2 weeks delivery time
-
+
Exalto EWT 223BD 12V 40° bulkhead-mounted wiper motor from the MD1 series with pendulum arm, interval wiping, and self-parking. It delivers 23 Nm torque for controlled wiping in marine and industrial applications, designed for 20 mm wall thickness and reliable 12 VDC operation.
- Description
- Ask a Question
-

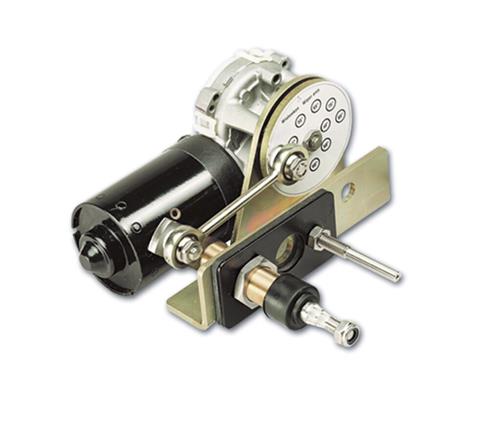

Exalto EWT Wiper 223BD 12V 40° 23Nm Bulkhead 20mm
The Exalto EWT 223BD is a 12V DC bulkhead-mounted wiper motor from the MD1 series. This model features a pendulum arm type, speed interval control, and a self-parking function. With a torque of 23 Nm and a 40° angle of view, it is suitable for reliable wiping performance in marine and industrial applications where controlled coverage is required.
Key Features
- Bulkhead-mounted wiper motor
- Pendulum arm type
- Speed interval control
- Self-parking function
- Ungrounded system
- Designed for MD1 series
Technical Data
Article Code XA2165.30-40 Sales Unit 1 piece EAN Code 8720763538696 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 40° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 76 mm Distance HoH 50 mm Wall Thickness 20 mm Support Diameter 6.4 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 180 mm Product Depth 189.5 mm Product Height 108 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30-40 | Barcode: 8720763538696
-
