ID
1344870
$ 196.03
1-2 weeks delivery time
-
+
The Exalto EWT wiper 215 BD 12 V with 25 mm shaft is a self-parking single-drive motor for glass and bulkhead mounting, featuring IP66 waterproof protection and insulated earth for exposed marine environments.
- Description
- Ask a Question
-

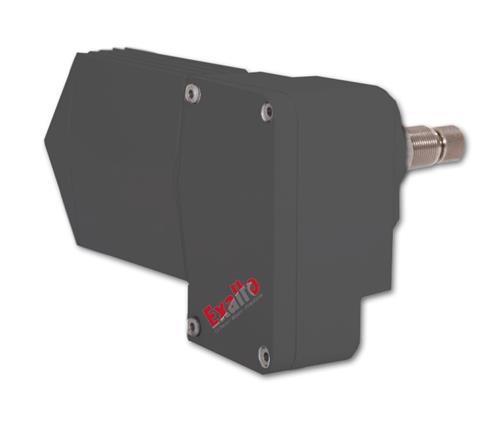

Exalto EWT Wiper 215 BD 12V 25mm Shaft Black Insulated Earth
The Exalto EWT 215 BD is a self-parking single-drive wiper motor designed for glass and bulkhead mounting. It can be adapted for parallel use with a connection kit supplied with the parallel arm. The motor features a fully waterproof housing with IP66 protection, making it suitable for use on a flying bridge or in an open cockpit.
Key Features
- Self-parking wiper motor
- Single-drive design
- Speed interval: yes
- Suitable for glass and bulkhead mounting
- Fully waterproof housing (IP66)
- Adaptable for parallel use
- Insulated earth (ungrounded)
Technical Data

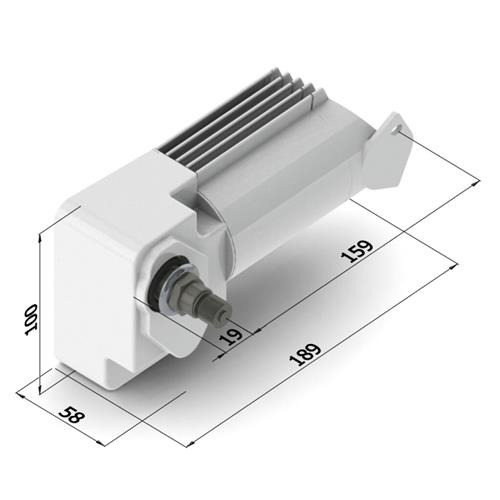

Sales Unit 1 Pieces Voltage (V) 12 VDC Power (W) 15 Torque (Nm) 15 Maximum Amperage (A) 3 Recommended Fuse Rating (A) 5 Drive Shaft Diameter (mm) 15 Shaft Length (mm) 25 Distance HoH (mm) 45 Arm Type LD Driven Axles 1 Blade Length (mm) 600 Maximum Arm Length (mm) 600 Maximum Blade Length (mm) 600 Protection Class (IP) IP66 Product Width (mm) 177.5 Product Depth (mm) 94 Product Height (mm) 100 Color Black Series LD Type VDC Wall Thickness (mm) 0–15 Suitable For LD-215BD
Brand: Exalto Wiper Technologies B.V. (Article code: 2151225IER.B / Barcode: 8720193079356)
-
