ID
1344875
$ 199.76
1-2 weeks delivery time
-
+
The Exalto EWT wiper 215 BD 24 V with 75 mm shaft is designed for exposed marine installations, providing self-parking performance, speed interval operation, IP66 protection, and support for parallel configurations.
- Description
- Ask a Question
-

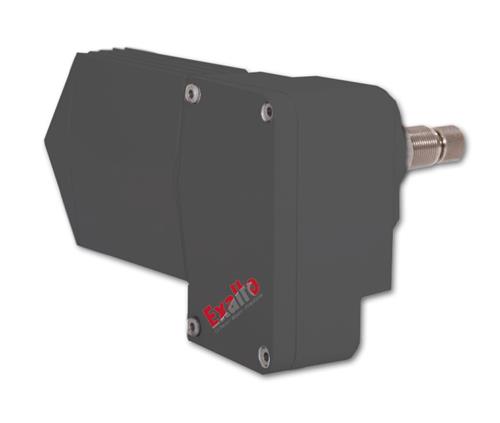

Exalto EWT Wiper 215 BD 24V 75mm Shaft Black Insulated Earth
The Exalto EWT 215 BD 24V with a 75 mm shaft is a self-parking single-drive wiper motor for glass and bulkhead mounting. It can be configured for parallel operation and is protected by a robust IP66 waterproof housing, making it suitable for exposed marine installations.
Key Features
- Self-parking wiper motor
- Single-drive configuration
- Speed interval: yes
- Glass and bulkhead mounting
- Waterproof housing rated IP66
- Parallel use supported
Technical Data

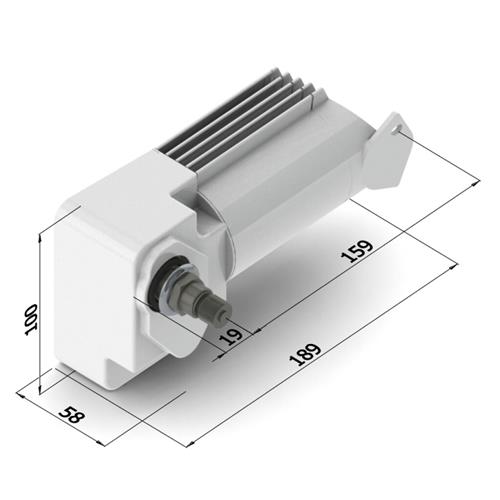

Sales Unit 1 Pieces Voltage (V) 24 VDC Power (W) 15 Torque (Nm) 15 Maximum Amperage (A) 1.5 Recommended Fuse Rating (A) 4 Drive Shaft Diameter (mm) 15 Shaft Length (mm) 75 Distance HoH (mm) 45 Arm Type LD Driven Axles 1 Blade Length (mm) 600 Maximum Arm Length (mm) 600 Maximum Blade Length (mm) 600 Protection Class (IP) IP66 Product Width (mm) 177.5 Product Depth (mm) 144 Product Height (mm) 100 Color Black Series LD Type (VAC / VDC) VDC Wall Thickness (mm) 40–65 Suitable For LD-215BD
Brand: Exalto Wiper Technologies B.V. (Article code: 2152475IER.B / Barcode: 8720193079424)
-
