Yes, Victron MPPT chargers work with lithium batteries. Modern solar setups often use lithium iron phosphate batteries. These batteries need specific charging care. Your Victron solar charge controller can manage this well. Its programming allows custom lithium battery profiles. You can set precise voltage parameters easily. This ensures safe and efficient solar power charging. It protects your battery investment from damage.
Victron SmartSolar models offer useful Bluetooth connectivity. You can adjust settings via a smartphone app. Select your battery type from the menu. Choose LiFePO4 for lithium iron phosphate models. Then input your battery's exact voltage limits. Always follow your battery manufacturer's guidelines. Correct settings maximize battery life and performance. They prevent overcharging during absorption phases.
This combination creates a powerful renewable energy system. You gain reliable off-grid or backup power. The controller optimizes solar panel energy harvest. Your lithium battery stores more usable energy. This setup is a future-proof energy solution. It outperforms old lead-acid battery systems. Fine-tuning is simple through the Victron app. Start your sustainable power project with confidence.
Understanding MPPT Technology for Lithium Batteries
An MPPT solar controller acts like a smart translator. It optimizes power flow from solar panels. This happens under all weather conditions. It ensures every possible watt is harvested. Your lithium batteries then receive this maximum energy. This technology greatly boosts charging efficiency. Even partial sunlight gets converted effectively. It maximizes your system's daily energy yield. Lithium chemistry benefits deeply from this precision. The controller finds the ideal operating voltage. This process repeats constantly throughout the day. Your investment in solar power works harder. It is a key to modern off-grid systems.
How MPPT Solar Charge Controllers Work
| Process Step | What the Controller Does | Result for the System |
|---|---|---|
| Power Point Search | Measures voltage and current to locate the spot with the highest watt output | Panels operate where they deliver maximum power |
| Load Adjustment | Shifts the electrical load to push panels toward the best power zone | Modules avoid low-power fluctuations caused by shade or temperature |
| Voltage Conversion | Converts extra panel voltage into additional charging current | Battery receives more energy without changing panel capacity |
| Continuous Recheck | Recalculates the peak as light conditions change | Charging remains steady even during clouds or partial shade |
| Optimized Output | Keeps panels working near their peak power zone | Higher total energy harvest compared to non-tracking controllers |
Key Differences in Charging Lithium vs Other Chemistries
Charging a lithium battery requires a mindset very different from managing traditional lead-acid units. Long absorption stages and equalization pulses that help lead-acid packs are not only unnecessary for lithium systems — they can shorten their usable life. Lithium technology prefers a clean, controlled charging routine.
These batteries accept rapid current delivery, reaching their target voltage quickly without extended top-off phases or a constant float hold. This lean charging behavior pairs perfectly with the fast-response nature of a modern MPPT controller, enabling higher daily solar yield and a longer cycle life for the battery.
Victron's Advanced Solar Charging Algorithms
| Advanced Algorithm | Its Intelligent Function | The Real-World Advantage |
|---|---|---|
| Adaptive Absorption Management | This logic dynamically extends the bulk charging phase based on the battery's recent history. If the battery was deeply depleted, it allows for a longer, more thorough absorption period to ensure a complete charge. | It automatically guarantees your battery bank is genuinely replenished after heavy use, promoting better health and capacity without requiring manual intervention. |
| BatteryGuard & Self-Regulating Logic | The controller continuously monitors for potential system faults, such as excessive temperature or voltage deviations, and can preemptively adjust its output or disconnect to protect your components. | It acts as a vigilant guardian for your entire power setup, safeguarding your investment in batteries and electronics from unforeseen issues. |
| Bluetooth-Integrated Live Analysis | Through the VictronConnect app, the controller provides a live data stream of its decision-making process, showing real-time power harvesting, operational mode, and any active adjustments it is making. | This offers complete transparency, allowing you to see the direct impact of weather and usage on your system's performance and verify its efficiency firsthand. |
Victron SmartSolar and BlueSolar Capabilities
Both SmartSolar and BlueSolar models support lithium batteries. SmartSolar adds convenient Bluetooth monitoring and control. You can adjust settings easily from a mobile app. BlueSolar provides reliable core MPPT functionality. Each line understands lithium's specific charging needs. They move far beyond basic lead-acid profiles. This intelligence protects and prolongs your battery life. You gain a tailored charging approach. The built-in lithium presets offer a great start. Fine-tuning options are also available for experts. Your power setup becomes more efficient and aware.
SmartSolar MPPT with Lithium Battery Presets
Victron’s SmartSolar MPPT controllers streamline lithium setup by offering ready-to-use charging profiles. They include built-in settings that remove the need for manual configuration.
- A specific “LiFePO4” choice under the battery type section.
- Pre-calibrated voltage ranges designed for typical smart lithium systems.
- Automatic control of the full charging sequence for genuine plug-and-play functionality.
BlueSolar MPPT Controller Compatibility
The BlueSolar MPPT line can also charge lithium iron phosphate batteries efficiently. Unlike SmartSolar units, it requires a manual setup done directly through the onboard interface.
- Use the physical buttons to reach the charging configuration menu.
- Enter the exact absorption and float values recommended by your battery manufacturer.
- Be sure to deactivate the equalization mode to avoid excess charging energy.
Firmware Updates for Enhanced Lithium Support
Updating your controller’s firmware is an easy way to refine how it handles lithium chemistry. New releases can include improved charge logic and support for newer battery technologies, keeping your system current for years to come.
By pairing your controller with the VictronConnect app, you can check for updates and install them wirelessly. This keeps your setup aligned with Victron’s latest developments and ensures the best performance for your LiFePO4 battery bank.
Configuring Your Victron Controller
Start by selecting the lithium preset. After that, verify all voltage values. Refer to your battery’s official specification sheet for exact numbers. Manually enter both absorption and float voltages. Disable equalization designed for lead-acid units. Also turn off automatic temperature compensation. These steps keep lithium systems safe. Check current limits so they match your system design. The setup takes only a short time, and your system will charge correctly and safely afterward.
Accessing the Lithium Battery Charge Profile

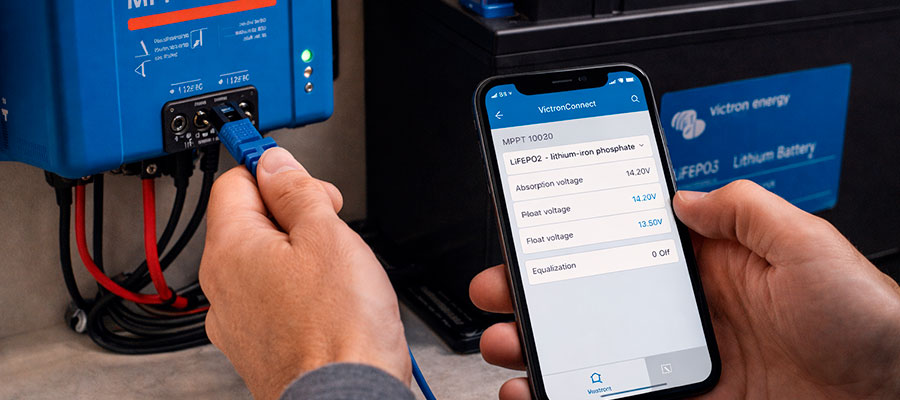

Choosing the correct preset is the foundation of the entire setup. On a SmartSolar controller, this is done directly through the VictronConnect app with a few simple steps:
- Open the VictronConnect app and connect to your MPPT charger via Bluetooth.
- Go to the Settings section and select Battery preset.
- Scroll down and choose LiFePO4 to enable the lithium charging profile.
Setting Custom Absorption and Float Voltages
Although the factory presets offer a reliable baseline, adjusting voltage values can maximize the lifespan and performance of your specific battery. Always rely on the numbers supplied by your battery manufacturer.
- Open the Advanced or User-defined settings menu in VictronConnect.
- Set the Absorption voltage to the exact rating specified for your 12V system.
- Adjust the Float voltage to the maintenance level listed in the datasheet, which is often lower than preset values.
Enabling Temperature-Compensated Charging
For flooded lead-acid batteries, charging voltage is typically adjusted based on temperature. In contrast, most modern LiFePO4 packs contain a built-in BMS that handles cell temperature internally. External temperature compensation is usually not needed for lithium and can interfere with the BMS.
With Victron controllers, it is generally recommended to disable temperature-based voltage adjustments and let the battery’s own electronics handle thermal conditions.
System Integration and Communication
Many contemporary controllers can communicate directly with lithium batteries through a data cable. This allows the battery to share its charging needs in real time. The controller then regulates current and voltage based on live feedback. This communication creates an optimized charging cycle. Your system becomes more efficient and longer-lasting. Always use the approved communication cables. Make sure firmware is fully updated. This direct interaction is a key advantage of modern lithium-ready setups.
Connecting via VE Direct and VE Smart Networking
Victron devices can communicate with each other to create a cohesive and intelligent power system. VE Direct provides a simple wired data link, while VE Smart establishes a wireless network for more sophisticated integration.
- Linking a SmartSolar charge controller to a battery monitor using a VE Direct cable.
- Creating a VE Smart network between a controller and a smart lithium battery for data exchange.
- Allowing the solar controller to receive real-time state of charge data for superior decision-making.
Using the VictronConnect App for Setup
The VictronConnect app serves as the central hub for configuring, monitoring, and understanding your solar power system. It translates complex electrical parameters into an intuitive visual interface on your smartphone or tablet. Your entire system's configuration is at your fingertips. With this tool, you can effortlessly select your battery type, fine-tune charge voltages, analyze historical energy production, and receive real-time alerts, making the management of your diy solar project both simple and deeply insightful.
Integration with Battery Management Systems (BMS)
The highest level of system integration is achieved when your charge controller can communicate directly with the battery's internal brain. This allows for proactive management based on the battery's actual condition, not just voltage approximations.
- The BMS can request a reduction in charge current if cell voltages approach their limit.
- The system shares a highly accurate state of charge percentage, preventing unexpected shutdowns.
- It provides a critical failsafe by allowing the BMS to halt charging in case of an internal fault.
Optimal Charging Parameters for Lithium
Use a constant current followed by constant voltage. Set the absorption voltage as your battery specifies. Lithium cells require no prolonged absorption time. The float voltage should be significantly lower. Never apply an equalization charge to lithium. Avoid using voltage offsets for temperature. Termination occurs when current drops very low. This method is simple, precise, and effective. It respects the inherent nature of lithium chemistry.
Recommended Voltage Settings for Different Lithium Types
While LiFePO4 is the dominant lithium technology in off-grid solar, other types like NMC (Lithium Nickel Manganese Cobalt Oxide) have their own specific voltage requirements. Always prioritize your battery manufacturer's guidelines. For a standard 12V LiFePO4 battery, the absorption voltage typically falls between 14.2V and 14.6V, with a float voltage around 13.5V. Using a controller like the Victron MPPT 75, you can input these precise values into a custom profile to ensure a perfect, chemistry-specific charge every time.
Bulk, Absorption, and Float Stage Configuration
Understanding the distinct stages of the charging process empowers you to verify your system is operating at peak efficiency. The controller intelligently transitions between these stages to optimize the charge cycle.
- Bulk Stage: The controller delivers maximum charge current until the absorption voltage is reached.
- Absorption Stage: Voltage is held constant while the charge current gradually tapers down.
- Float Stage: Voltage is lowered to a safe level to maintain the battery without stressing it.
Equalization Considerations for Lithium Batteries
An equalization charge is a controlled overcharge designed to de-sulfate and balance the cells in a lead-acid battery bank. Applying this process to a lithium battery is not only redundant but also hazardous. Equalization must be disabled for lithium chemistry. The internal BMS in a lifepo4 pack is responsible for maintaining cell balance, making this function completely obsolete. When configuring your Victron controller, always confirm the equalization voltage is set to 0.0V or the function is turned off to ensure the safety and longevity of your energy storage.
Troubleshooting and Best Practices
First, inspect all physical wire connections. Ensure solar panel voltage is within controller limits. Verify the selected battery profile is correct. Consult the extensive Victron community forums online. Monitor your system's performance data regularly. Logs can reveal hidden issues or trends. Keep your controller's firmware updated. Simple checks often resolve common problems. Consistent monitoring builds system understanding and trust.
Addressing Common Lithium Charging Issues
If you encounter problems, a systematic check can usually pinpoint the cause quickly. The charger might have inadvertently reverted to a default lead-acid profile, or the battery's BMS may have entered a protection mode due to a boundary being reached.
- Verify the correct battery type is actively selected in the controller's settings.
- Check all connections for tightness and inspect for any signs of corrosion.
- Use the Victron community forum to search for specific error codes or symptoms described by other users.
Maximizing Solar Harvest with Lithium Batteries
A significant advantage of pairing lithium batteries with a Victron MPPT is their ability to accept high charge currents for nearly the entire charging process. Lithium batteries maintain high charge acceptance. Unlike lead-acid, which requires a tapering current as it fills, lithium can soak up the full maximum power point current from your panels until it is almost completely full.
This allows your solar array to operate at its peak output for a longer duration each day, drastically reducing recharge times and maximizing the utility of every hour of sunlight.
When to Use External Battery Protections
While a well-configured Victron controller is highly reliable, a layered defense is the hallmark of a truly robust solar power system. An external battery monitor with programmable alarms can provide a valuable secondary alert system independent of the charger. For ultimate peace of mind, especially with large or hard-to-access house battery banks, these extra layers of monitoring and protection are a worthwhile consideration.
Installing a standalone battery protector can serve as a final, physical disconnect if all other systems were to fail. This creates a comprehensive safety net that safeguards not just your battery, but also your entire energy investment, ensuring operational security for years to come.
