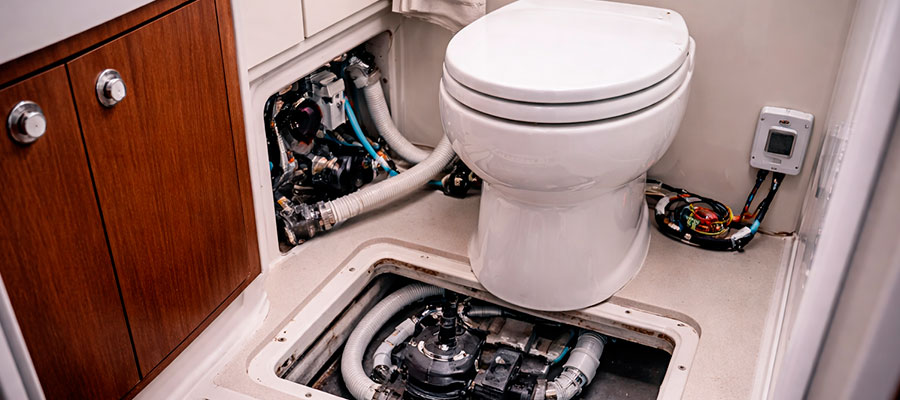

Many boat and RV owners tire of the Tecma’s electric pump and yearn for the simplicity of a straight-drop bowl. Yet replacing that powered macerating unit with a standard gravity model is closer to a mini-remodel than a parts change. You’ll need to run a new 3-inch waste line, relocate water supply fittings, and modify the black-tank inlet to suit a direct fall. Factor in cabinetry access and floor-flange adjustments, and the job quickly moves from “afternoon project” to a full plumbing upgrade.
Comparing Tecma Macerating Toilets to Regular Gravity Flush Toilets
- Waste Path – A Tecma uses a 12-volt macerator to shred waste and pump the slurry through narrow hose runs, letting the fixture sit almost anywhere in the coach or cabin. A gravity unit needs a straight, wide drop pipe positioned directly above the holding-tank inlet.
- Water Use – Tecma’s programmable eco-flush can sip minimal water; modern low-flow gravity bowls now rival that efficiency, though older models were thirstier.
- Install Flexibility – Because it can push uphill or laterally, a Tecma fits below deck or offset from the tank. A gravity design must bolt over the tank for a vertical dump.
- Noise Level – Tecma’s flush triggers a brief motor whir, whereas a gravity bowl is largely silent except for the water rush.
- Power Needs – The Tecma’s pump and solenoid draw 12-volt DC, tying it to the electrical system; a gravity toilet is fully mechanical, ideal for boondocking where electricity is scarce.
Plumbing Differences: What You Need to Know About Water Supply and Discharge
| Plumbing Element | Tecma Macerator System | Conventional Gravity Bowl |
|---|---|---|
| Waste Outlet | Liquefied waste is pumped through a 38 mm ( ≈ 1½-inch ) flexible hose driven by a 12-volt macerator. | Needs a rigid, straight 75 mm ( ≈ 3-inch ) drop pipe so contents fall freely into the tank. |
| Tank Hook-Up | Hose may enter the holding tank from the lid or a side port, giving broad placement freedom. | Toilet must bolt directly above the tank and seal to a floor flange on the tank top. |
| Water Feed | Uses a pressurised supply line controlled by an electronic solenoid; flush volume is software-set. | Simple foot-pedal or hand-lever valve admits water—no electronics, no power draw. |
Installation Challenges: Flange Size and Behind the Toilet Considerations
- Drill the new drop point first. A gravity toilet needs a laser-straight, 3-inch chute that lands squarely on the tank’s inlet. Because your Tecma’s slim hose exits elsewhere, you’ll have to core a perfectly centred hole through the floor directly above the tank.
- Seat a gas-tight flange. After coring, fasten a heavy-duty toilet flange with sealant; it doubles as the airtight junction to the waste stack and the bolt base for the new porcelain.
- Confirm the rough-in distance. Gravity models often project farther from the wall than macerators. Measure wall-to-flange spacing before you buy so the bowl clears doors, lockers and cabinetry.
- De-energise the old 12-volt circuit. The wires that once powered the Tecma pump are now redundant. Pull the fuse, cap the leads with approved connectors, and secure them so they can’t chafe or short in the future.
Common Thetford Tecma Toilet Problems and Forum Solutions
Even premium Tecma bowls spark lively forum talk. The three gripes that surface again and again are:
- Phantom “Tank Full” lights that lock the flush when the reservoir is nowhere near capacity.
- Intermittent macerator hiccups—the pump hums, then quits mid-cycle.
- Surprising water draw in “eco” mode, draining the fresh tank faster than expected.
Knowing these patterns helps you zero-in on fixes instead of chasing random faults.
Troubleshooting the Red Light: What It Means When Your Tecma Toilet Sensor Activates
If your Tecma’s alert LED glows red even when the holding tank is bone-dry, three culprits top the list. Mineral film or waste residue can insulate the level probes, fooling the circuit—flush the tank well and wipe the sensors clean. Dodgy wiring is next: a corroded spade terminal or half-seated plug can send ghost signals, so trace every connector and polish or reseat as needed. Last resort? A failed logic board. When a scrubbed-and-rewired system still cries “full,” swap the control module; a hard reset rarely revives a board once it’s gone rogue.
Macerator Pump Issues: Diagnosing Noise, Clogs, and Failure
A macerator tells on itself—listen carefully and you can pinpoint the fault in seconds:
- Metal-on-metal clatter – A foreign object (coin, screw, bottle-cap) is chewing up the cutter plate. Kill power, strip the pump, and pluck it out before the motor overheats.
- Quiet hum, but no swirl – The rotor turns, yet the blade stack is bound by a wad of tissue or a stray wipe. Remove the clog, reassemble, and run a short test flush.
- Flush that drags on forever – Either the discharge hose is half-blocked with scale or the knives have dulled. Clear the line first; if flow is still sluggish, install a new blade kit to restore a brisk 3-4 second cycle.
Water Usage Problems: When Your Tecma Uses Too Much Fresh Water
If your holding tank fills suspiciously fast, the toilet is likely overdosing each flush. First, open the control pad and drop the flush profile to Eco or Low-Water. Still seeing the level climb? Pull the inlet solenoid; a worn or grimy plunger often leaks a slow trickle between cycles. Scrub the seat or fit a new valve, and the bowl will quit sipping fresh water when nobody’s around.
Step-by-Step Tecma Toilet Replacement Guide for RV Owners
Replacing a powered Tecma with a gravity toilet isn’t a five-minute task; it’s a mini-remodel. You’ll yank the macerator, cap the 12-volt feed, cut a centred 3-inch drop into the sub-floor, install a gas-tight flange, and reroute both supply and vent lines before the new bowl bolts down. Budget a full afternoon (and a second pair of hands) to get the job done neatly and leak-free.
Removing Your Old Toilet: Disconnecting Water Supply and Discharge Pipes
- Kill power & pump – Pull the 12-volt fuse that feeds the bowl and switch off the RV’s water pump.
- Drain & rinse the black tank – Empty it fully, then give the tank a quick flush so no residue back-flows.
- Unhook services – Crack the water-supply fitting (rag ready for drips) and unplug the two-wire harness.
- Release the discharge hose – Gloved up, pop the macerator outlet free from the bowl spigot.
- Remove floor hardware – Spin out the hold-down bolts and lift the unit straight up and clear of the room.
Selecting the Right Replacement Toilet: Tecma Silence Plus 2G vs Other Options
- Gravity bowl (Dometic 310/320, etc.) – Cheapest path but means sawing a perfectly centred 3-inch hole, fitting a flange, and rerouting plumbing for a straight shot into the tank.
- Direct-fit macerator (Tecma Silence Plus 2G) – Uses existing hoses and 12-volt feed; higher sticker price, zero floor surgery.
Installation Tips for a Better Experience with Your New Toilet
Measure twice before coring the new drain; a quarter-inch off-centre invites trouble. Seat a fresh wax ring—or rubber seal—then lower the bowl evenly. Hand-tighten opposing bolts a little at a time to avoid stressing porcelain. Restore water, cycle a few flushes, and run fingers around every joint; even a pin-size drip needs fixing now, not later.
Upsides & Trade-offs of Replacing a Thetford Tecma with a Conventional RV Bowl
| Why a Gravity Toilet Looks Attractive | Drawbacks to Keep in Mind |
|---|---|
| Smaller upfront price tag | Requires major replumbing and floor work |
| Straightforward, all-mechanical innards | You lose the freedom to site the bowl far from the tank |
| Runs fine with zero 12 V power | Typically drinks more fresh water per flush |
| Near-silent operation—no macerator hum | Drop pipe can build a “pyramid” of waste if water is stingy |
Cost Comparison: Tecma Silence Plus vs Standard Toilets
- Gravity‐flush basics: A no-frills porcelain “drop” bowl still lands in the ≈ $150–$400 window. Set a bit extra aside for the 3-in. floor flange, mounting bolts, and a fresh wax (or rubber) seal.
- Tecma Silence Plus: Sticker shock starts around one grand. Yet a straight macerator-for-macerator swap usually spares you saw-dust, new pipe runs, and hours of labour—so the higher box price can even out once installation time is tallied.
Comfort and Convenience Differences for RV Owners
- Tecma experience: With its built-in macerator, a Silence Plus feels almost residential—full-length seat, whisper-low water dose, and liberty to park the bowl anywhere the hose can reach (above, behind, or even below the holding tank).
- Gravity classics: Mechanical purists favour the drop-tube design—no pump, no wires, hardly anything to break. Modern high-end gravity bowls now come with elongated seats, so the sit-down comfort gap has essentially disappeared.
